Product Summary

The AD8051ARZ is a low cost, high speed, voltage feedback amplifier. The amplifiers operate on +3 V, +5 V, or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail. Despite their low cost, the AD8051ARZ provides excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing maximum output dynamic range with excellent overdrive recovery. The AD8051ARZ is well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications. The AD8051ARZ can be used in active filters, analog-to-digital drivers, clock buffer, consumer video professional cameras, CCD imaging systems, and CD/DVD ROM.

Parametrics

AD8051ARZ absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Input Voltage (Common Mode): ±VS; (3)Differential Input Voltage: ±2.5 V ; (4)Output Short-Circuit Duration: Observe power derating curves; (5)Storage Temperature Range (R): -65°C to +150°C; (6)Operating Temperature Range (A Grade): -40°C to +125°C; (7)Lead Temperature (Soldering 10 sec): 300°C.

Features

AD8051ARZ features: (1)high speed and fast settling on 5 v; (2)single-supply operation ; (3)video specifications (G = +2); (4)Low distortion; (5)outstanding load drive capability; (6)low power: 2.75 mA/amplifier (AD8054) ; (7)low power: 4.4 mA/amplifier (AD8051/AD8052).

Diagrams

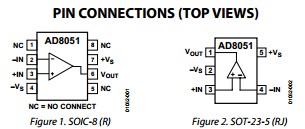

AD8051ARZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8051ARZ
AD8051ARZ

IC OPAMP VF R-R LDIST LP 8SOIC
Data Sheet
0-1: $1.46
1-10: $1.32
10-100: $1.06
100-250: $0.94
250-500: $0.82
500-1000: $0.68
1000-2500: $0.63
2500-5000: $0.63
AD8051ARZ-REEL
AD8051ARZ-REEL

IC OPAMP VF R-R LDIST LP 8SOIC
Data Sheet
0-2500: $0.63
AD8051ARZ-REEL7
AD8051ARZ-REEL7

IC OPAMP VF R-R LDIST LP 8SOIC
Data Sheet
0-1000: $0.68
