Product Summary
The AD811ARZ-16 is a high performance video Op Amp. A wideband current feedback operational amplifier, the AD811ARZ-16 is optimized for broadcast-quality video systems. The -3 dB bandwidth of 120 MHz at a gain of +2 and the differential gain and phase of 0.01% and 0.01°(RL = 150Ω) make the AD811ARZ-16 an excellent choice for all video systems. The AD811ARZ-16 is designed to meet a stringent 0.1 dB gain flatness specification to a bandwidth of 35 MHz (G = +2) in addition to low differential gain and phase errors. This performance is achieved whether driving one or two back-terminated 75 Ω cables, with a low power supply current of 16.5 mA. Furthermore, the AD811ARZ-16 is specified over a power supply range of ±4.5 V to ±18 V. The AD811ARZ-16 can be applied in video crosspoint switchers, multimedia broadcast systems, HDTV compatible systems, video line drivers, distribution amplifiers ADC/DAC buffers, DC restoration circuits, and medical.
Parametrics
AD811ARZ-16 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Output Short-Circuit Duration: Observe Derating Curves ; (3)Common-Mode Input Voltage: ±VS; (4)Differential Input Voltage: ±6 V ; (5)Storage Temperature Range (Q, E): -65°C to +150°C ; (6)Storage Temperature Range (N, R): -65°C to +125°C; (7)Lead Temperature Range (Soldering 60 sec): 300°C.
Features
AD811ARZ-16 features: (1)high speed; (2)excellent video performance (RL =150Ω); (3)low distortion: THD =-74 dB @ 10 MHz; (4)excellent dc precision: 3 mV max input offset voltage; (5)flexible operation.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

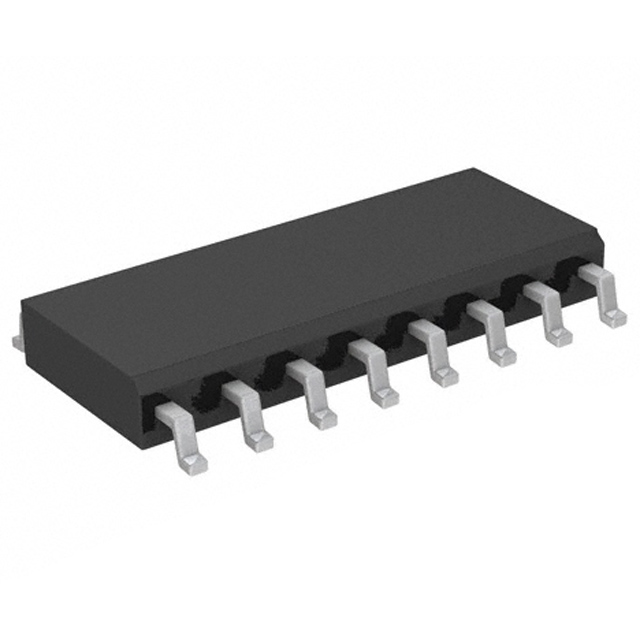

 AD811ARZ-16 |
|
IC VIDEO OPAMP HP 16-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD811ARZ-16-REEL |
|
IC OPAMP VIDEO HP 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
AD811ARZ-16-REEL7 |
|
IC OPAMP VIDEO HP 16SOIC |
Data Sheet |
|
|
||||||||||||||||||
