Product Summary
The AD829ARZ is a low noise (1.7 nV/√Hz), high speed op amp with custom compensation that provides the user with gains of ±1 to ±20 while maintaining a bandwidth greater than 50 MHz. The AD829ARZ 0.04° differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverseterminated 50 Ω or 75Ω cables, makes it ideally suited for professional video applications. The AD829ARZ achieves its 230 V/μsuncompensated slew rate and 750 MHz gain bandwidth while requiring only 5 mA of current from power supplies. The AD829ARZ external compensation pin gives it exceptional versatility. For example, compensation can be selected to optimize the bandwidth for a given load and power supply voltage. As a gain-of-two line driver, the –3 dB bandwidth can be increased to 95 MHz at the expense of 1 dB of peaking. The AD829 output can also be clamped at its external compensation pin. The AD829ARZ exhibits excellent dc performance. It offers a minimum open-loop gain of 30 V/mV into loads as low as 500 Ω, low input voltage noise of 1.7 nV/√Hz, and a low input offset voltage of 1 mV maximum. Common-mode rejection and power supply rejection ratios are both 120 dB.
Parametrics
AD829ARZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±V; (3)Differential Input Voltage3: ±6 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range (Q, E): –65°C to +150°C; (6)Storage Temperature Range (N, R): –65°C to +125°C; (7)Operating Temperature Range AD829A: –40°C to +125°C; (8)Lead Temperature Range (Soldering 60 sec): 300°C.
Features
AD829ARZ features: (1)high speed; (2)ideal for video applications: 0.02% differential gain; (3)low noise; (4)excellent dc precision; (5)flexible operation; (6)available in tape and reel in accordance with EIA-481A standard.

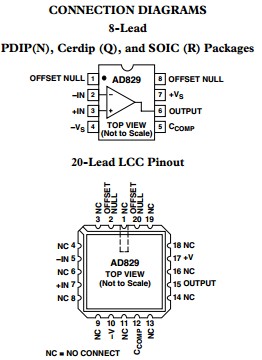

Diagrams
