Product Summary

The AD8542ARZ is a Low power dual operational amplifier.The AD8542ARZ is used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance.The AD8542ARZ is optimized to maintain high gains at lower supply voltages,making them useful for active filters and gain stages.Application areas of The AD8542ARZ include Sensor interfaces,Piezoelectric transducer amplifiers,Medical instrumentation.

Parametrics

AD8542ARZ absolute maximum ratings: (1)Supply Voltage(VS): 6V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V; (4)Storage Temperature Range: -65°C to +150°C; (5)Operating Temperature Range: -40°C to +125°C; (6)Junction Temperature Range :-65°C to +150°C; (7)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

AD8542ARZ features:(1)Single-supply operation: 2.7 V to 5.5 V;(2)Low supply current: 45 μA/amplifier;(3)Wide bandwidth: 1 MHz;(4)No phase reversal;(5)Low input currents: 4 pA;(6)Unity gain stable;(7)Rail-to-rail input and output;(8)Qualified for automotive applications.

Diagrams

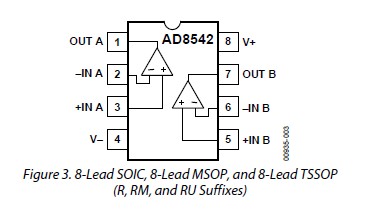

AD8542ARZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8542ARZ
AD8542ARZ

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-1: $0.68
1-10: $0.60
10-100: $0.48
100-250: $0.42
250-500: $0.37
500-1000: $0.29
1000-2500: $0.27
2500-5000: $0.26
AD8542ARZ-REEL
AD8542ARZ-REEL

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-2500: $0.27
AD8542ARZ-REEL7
AD8542ARZ-REEL7

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-1: $0.70
1-10: $0.62
10-25: $0.56
25-100: $0.49
100-250: $0.43
250-500: $0.38
