Product Summary

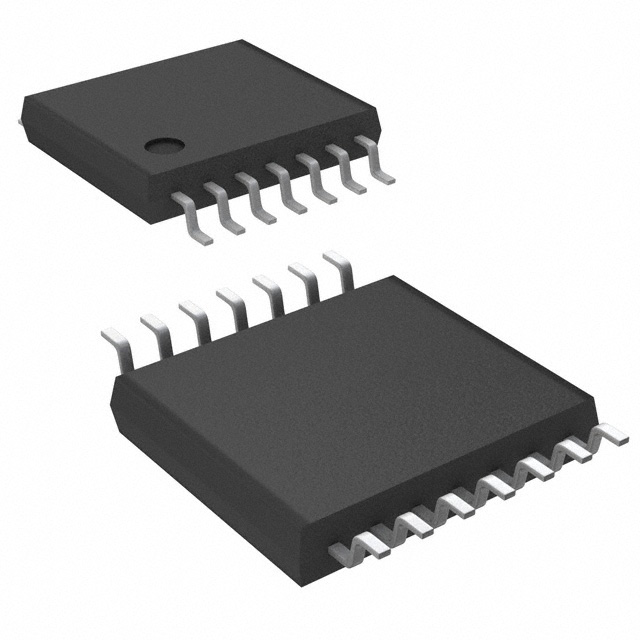

The AD8544ARUZ is a low power dual operational amplifier.The AD8544ARUZ is used for integrators, photodiode amplifiers, piezoelectric sensors, and other applications with high source impedance.The AD8544ARUZ is optimized to maintain high gains at lower supply voltages,making them useful for active filters and gain stages.The AD8544ARUZ is available in 14-lead narrow SOIC and 14-lead TSSOP surface-mount packages.Application areas of The AD8544ARUZ include Sensor interfaces,Piezoelectric transducer amplifiers,Medical instrumentation.
Parametrics
AD8544ARUZ absolute maximum ratings: (1)Supply Voltage(VS): 6V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V; (4)Storage Temperature Range: -65°C to +150°C; (5)Operating Temperature Range: -40°C to +125°C; (6)Junction Temperature Range :-65°C to +150°C; (7)Lead Temperature Range (Soldering, 60 sec): +300℃.
Features
AD8544ARUZ features:(1)Single-supply operation: 2.7 V to 5.5 V;(2)Low supply current: 45 μA/amplifier;(3)Wide bandwidth: 1 MHz;(4)No phase reversal;(5)Low input currents: 4 pA;(6)Unity gain stable;(7)Rail-to-rail input and output;(8)Qualified for automotive applications.

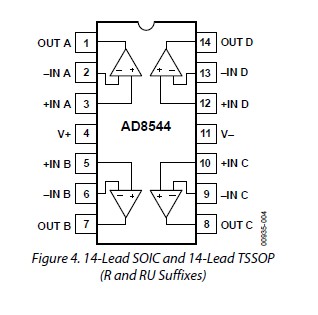

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8544ARUZ |
|
IC OPAMP GP R-R CMOS 14TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
AD8544ARUZ-REEL |
|
IC OPAMP GP R-R CMOS 14TSSOP |
Data Sheet |
|
|
||||||||||||||||||||
