Product Summary

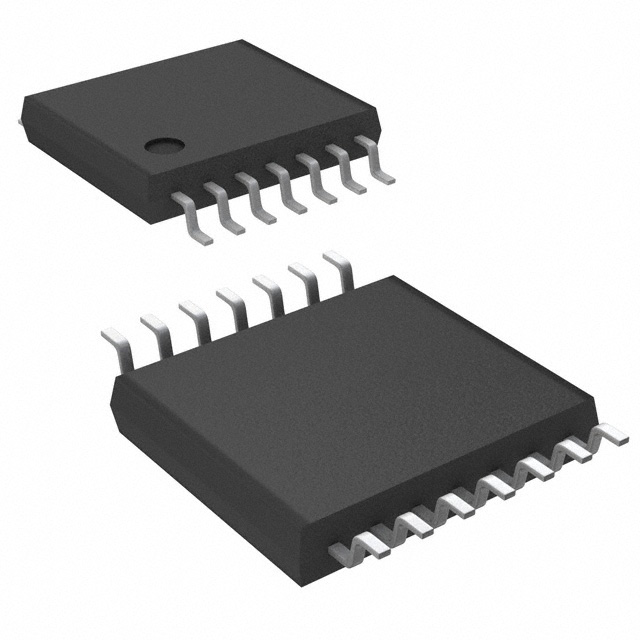

The AD8567ARUZ is a low cost, single-supply, rail-to-rail input and output operational amplifier.The AD8567ARUZ is ideal for LCD grayscale reference buffer and VCOM applications.The AD8567ARUZ is specified over the -40°C to +85°C temperature range.The AD8567ARUZ quad is available in a 14-lead TSSOP package and a 16-lead LFCSP package.

Parametrics

AD8567ARUZ absolute maximum ratings: (1)Supply Voltage: 18V; (2)Input Voltage: 0.5 V to VS + 0.5 V; (3)Differential Input Voltage: VS; (4)Storage Temperature Range : –65℃ to +150℃; (5)Operating Temperature Range: –40℃ to +85℃; (6)Junction Temperature Range : –65℃ to +150℃; (7)Lead Temperature Range (Soldering, 60 sec): +300℃.

Features

AD8567ARUZ features: (1)Single-supply operation: 4.5 V to 16 V; (2)Input capability beyond the rails; (3)Rail-to-rail output swing; (4)Continuous output current: 35 mA; (5)Peak output current: 250 mA; (6)Offset voltage: 10 mV; (7)Slew rate: 6 V/μs; (8)Unity gain stable with large capacitive loads; (9)Supply current: 700 μA per amplifier.

Diagrams

AD8567ARUZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8567ARUZ
AD8567ARUZ

IC OPAMP GP R-R 5MHZ 14TSSOP
Data Sheet
0-1: $1.51
1-10: $1.35
10-100: $1.11
100-250: $1.00
250-500: $0.90
500-1000: $0.76
1000-2500: $0.72
AD8567ARUZ-REEL
AD8567ARUZ-REEL

IC OPAMP GP R-R 5MHZ 14TSSOP
Data Sheet
0-2500: $0.72
