Product Summary
The AD8602ARZ is a single, dual, and quad rail-to-rail, input and output, single-supply amplifier.The AD8602ARZ offers this ac performance with lower dc precision at a lower price point.Applications of the AD8602ARZ include audio amplification for portable devices, portable phone headsets, bar code scanners, portable instruments, cellular PA controls, and multipole filters.The AD8602ARZ enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.
Parametrics
AD8602ARZ absolute maximum ratings: (1)Supply Voltage: 6V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V; (4)Storage Temperature Range : –65℃ to +150℃;(5)Operating Temperature Range: –40℃ to +125℃; (6)Junction Temperature Range P, S Package: –65℃ to +150℃; (7)Lead Temperature Range (Soldering, 60 sec): +300℃. (8)ESD:2 kV HBM.
Features
AD8602ARZ features: (1)Low offset voltage: 500 μV maximum; (2)Single-supply operation: 2.7 V to 5.5 V; (3)Low supply current: 750 μA/Amplifier; (4)Wide bandwidth: 8 MHz; (5)Wide bandwidth: 8 MHz; (6)Wide bandwidth: 8 MHz; (7)No phase reversal; (8)Low input currents; (9)Unity-gain stable; (10)Qualified for automotive applications.

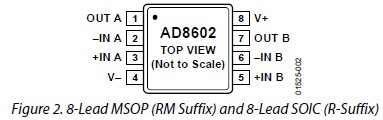

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8602ARZ |
|
IC OPAMP GP CMOS 8.4MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
AD8602ARZ-REEL |
|
IC OPAMP GP CMOS 8.4MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
|
AD8602ARZ-REEL7 |
|
IC OPAMP GP CMOS 8.4MHZ 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
