Product Summary

The AD9200JRSZRL is a monolithic, single supply, 10-bit, 20 MSPS analog-to-digital converter with an on-chip sample-and-hold amplifier and voltage reference. The AD9200JRSZRL uses a multistage differential pipeline architecture at 20 MSPS data rates and guarantees no missing codes over the full operating temperature range. The input of the AD9200JRSZRL has been designed to ease the development of both imaging and communications systems. The user can select a variety of input ranges and offsets and can drive the input either single-ended or differentially.

Parametrics

AD9200JRSZRL absolute maximum ratings: (1)AVDD, AVSS: -0.3 to +6.5 V; (2)DRVDD, DRVSS: -0.3 to +6.5 V; (3)AVSS, DRVSS: -0.3 to +0.3 V; (4)AVDD, DRVDD: -6.5 to +6.5 V; (5)MODE, AVSS: -0.3 to AVDD +0.3 V; (6)CLK, AVSS: -0.3 to AVDD +0.3 V; (7)Digital Outputs, DRVSS: -0.3 to DRVDD + 0.3 V; (8)AIN, AVSS: -0.3 to AVDD +0.3 V; (9)VREF, AVSS: -0.3 to AVDD +0.3 V; (10)REFSENSE, AVSS: -0.3 to AVDD +0.3 V; (11)REFTF, REFTB, AVSS: -0.3 to AVDD +0.3 V; (12)REFTS, REFBS, AVSS: -0.3 to AVDD +0.3 V; (13)Junction Temperature: +150℃; (14)Storage Temperature: -65 to +150℃; (15)Lead Temperature, 10 sec: +300℃.

Features

AD9200JRSZRL features: (1)CMOS 10-Bit, 20 MSPS Sampling A/D Converter; (2)Pin-Compatible with AD876; (3)Power Dissipation: 80 mW (3 V Supply); (4)Operation Between 2.7 V and 5.5 V Supply; (5)Differential Nonlinearity: 0.5 LSB; (6)Power-Down (Sleep) Mode; (7)Three-State Outputs; (8)Out-of-Range Indicator; (9)Built-In Clamp Function (DC Restore); (10)Adjustable On-Chip Voltage Reference; (11)IF Undersampling to 135 MHz.

Diagrams

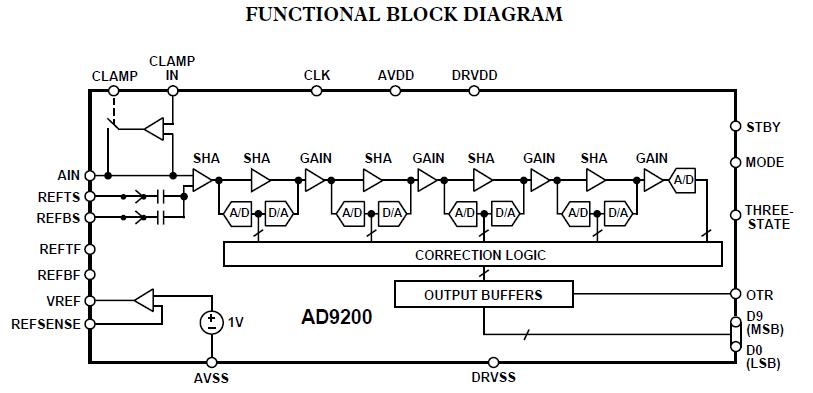

AD9200JRSZRL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9200JRSZRL
AD9200JRSZRL

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1500: $1.89
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9200
AD9200
Other

Data Sheet
Negotiable
AD9200ARS
AD9200ARS

IC ADC CMOS 10BIT 20MSPS 28-SSOP
Data Sheet
0-47: $3.30
AD9200ARSRL
AD9200ARSRL

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1500: $2.17
AD9200ARSZ
AD9200ARSZ

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1: $3.50
1-10: $3.15
10-100: $2.59
100-250: $2.38
250-500: $2.17
500-1000: $1.89
1000-2500: $1.86
AD9200ARSZRL
AD9200ARSZRL

IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
0-1500: $1.89
AD9200JRS
AD9200JRS
Analog Devices Inc
IC ADC 10BIT CMOS 20MSPS 28-SSOP
Data Sheet
1-47: $3.14
