AD9214BRSZ-RL105

Product Summary

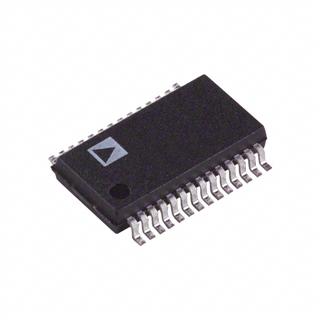

The AD9214BRSZ-RL105 is a 10-bit monolithic sampling analog-to-digital converter (ADC) with an on-chip track-and-hold circuit, and is optimized for low cost, low power, small size, and ease of use. The product operates up to 105 MSPS conversion rate with outstanding dynamic performance over its full operating range. The ADC requires only a single 3.3 V (2.7 V to 3.6 V) power supply and an encode clock for full performance operation. No external reference or driver components are required for many applications. The digital outputs are TTL/CMOS compatible and a separate output power supply pin supports interfacing with 3.3 V or 2.5 V logic. The clock input is TTL/CMOS compatible. In the power-down state, the power is reduced to 30 mW. A gain option allows support for either 1 V p-p or 2 V p-p analog signal input swing. Fabricated on an advanced CMOS process, the AD9214BRSZ-RL105 is available in a 28-lead surface-mount plastic package (28-SSOP) specified over the industrial temperature range (–40°C to +85°C). The AD9214BRSZ-RL105 can be applied in battery-powered instruments, hand-held scopemeters, low-cost digital oscilloscopes ultrasound equipment, cable reverse path, broadband wireless, and residential power line networks.

Parametrics

AD9214BRSZ-RL105 absolute maximum ratings: (1)Electrical AVDD Voltage: 4 V max; (2)Analog Input Voltage: –0.5 V to AVDD + 0.5 V; (3)Analog Input Current: 0.4 mA; (4)Digital Input Voltage: –0.5 V to AVDD + 0.5 V; (5)Digital Output Current: 20 mA max; (6)REF Input Voltage: –0.5 V to AVDD + 0.5 V; (7)Environmental2Operating Temperature Range (Ambient): –40°C to +125°C; (8)Maximum Junction Temperature: 150°C; (9)Lead Temperature (Soldering, 10 sec): 150°C; (10)Storage Temperature Range (Ambient): –65°C to +150°C.

Features

AD9214BRSZ-RL105 features: (1)low power: 190 mW at 65 MSPS; (2)30 mW power-down mode; (3)300 MHz analog bandwidth; (4)on-chip reference and track/hold; (5)1 V p-p or 2 V p-p analog input range option; (6)single 3.3 V supply operation (2.7 V–3.6 V); (7)two complement or offset binary data format option.

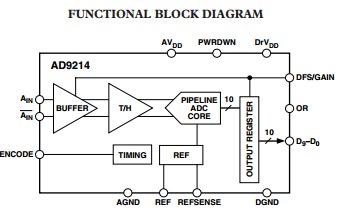

Diagrams
