Product Summary

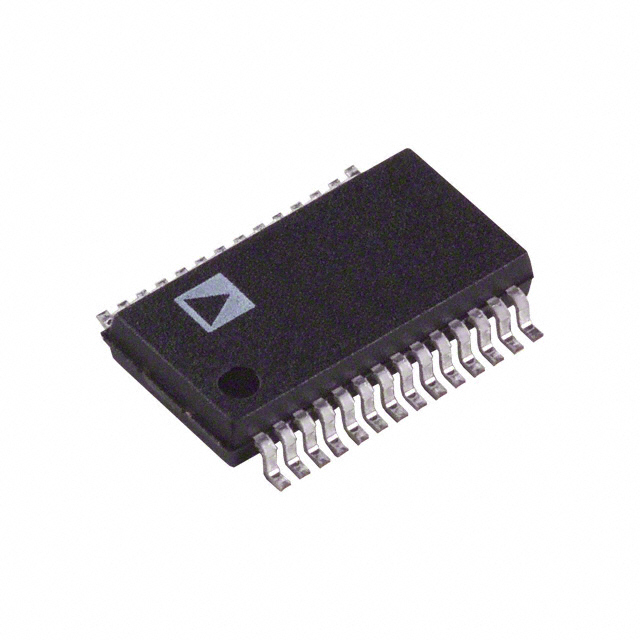

The AD9850BRSZ is a highly integrated device that uses advanced DDS technology coupled with an internal high speed, high performance D/A converter and comparator to form a complete, digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9850BRSZ generates a spectrally pure, frequency/phase programmable, analog output sine wave. This sine wave can be used directly as a frequency source, or it can be converted to a square wave for agile-clock generator applications. The AD9850BRSZ innovative high speed DDS core provides a 32-bit frequency tuning word, which results in an output tuning resolution of 0.0291 Hz for a 125 MHz reference clock input. The AD9850BRSZ also contains a high speed comparator that can be configured to accept the (externally) filtered output of the DAC to generate a low jitter square wave output. This facilitates the device use as an agile clock generator function. The AD9850BRSZ is available in a space-saving 28-lead SSOP, surface-mount package. It is specified to operate over the extended industrial temperature range of –40°C to +85°C. The AD9850BRSZ can be used in frequency/phase—agile sine wave synthesis, clock recovery and locking circuitry for digital communications, digitally controlled adc encode generator, and agile local oscillator applications.

Parametrics

AD9850BRSZ absolute maximum ratings: (1)Maximum Junction Temperature: 150°C; (2)VDD: 6 V; (3)Digital Inputs: –0.7 V to +VS; (4)Digital Output Continuous Current: 5 mA; (5)DAC Output Current: 30 mA; (6)Storage Temperature: –65°C to +150°C; (7)Operating Temperature: –40°C to +85°C; (8)Lead Temperature (Soldering 10 sec): 300°C; (9)SSOP θJA Thermal Impedance: 82°C/W.

Features

AD9850BRSZ features: (1)125 MHz clock rate; (2)on-chip high performance dac and high speed comparator; (3)DAC SFDR > 50 dB @ 40 MHz AOUT; (4)32-bit frequency tuning word; (5)simplified control interface: parallel byte or serial loading format; (6)phase modulation capability; (7)3.3 V or 5 V single-supply operation; (8)Low Power: 380 mW @ 125 MHz (5 V); (9)power-down function; (10)ultrasmall 28-lead ssop packaging.

Diagrams

AD9850BRSZ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD9850BRSZ
AD9850BRSZ


IC DDS SYNTHESIZER CMOS 28-SSOP

Data Sheet

0-1: $13.84
1-10: $12.80
10-100: $10.93
100-250: $10.03
250-500: $9.55
500-1000: $9.22
AD9850BRSZ-REEL
AD9850BRSZ-REEL


IC DDS SYNTHESIZER CMOS 28-SSOP

Data Sheet

0-1500: $9.22
