Product Summary
The ADD8506WRUZ is a 6-channel LCD gamma reference buffer designed to drive column driver gamma inputs in line inversion panels. Each buffer channel has an A/B input to select between two gamma voltage curves. These buffer channels drive the resistor ladders of LCD column drivers for gamma correction. The ADD8506WRUZ outputs have high slew rates and output drives that increase the stability of the reference ladder, resulting in optimal gray scale and visual performance. The applications of the ADD8506WRUZ include LCD line inversion gamma references, Car navigation panels, Personal media player panels.
Parametrics
ADD8506WRUZ absolute maximum ratings: (1)Supply Voltage: 7 V; (2)Input Voltage: GND to VCC; (3)Storage Temperature Range: -65℃ to +150℃; (4)Junction Temperature Range: -65℃ to +150℃; (5)Lead Temperature (Soldering, 60 sec): 300℃.
Features

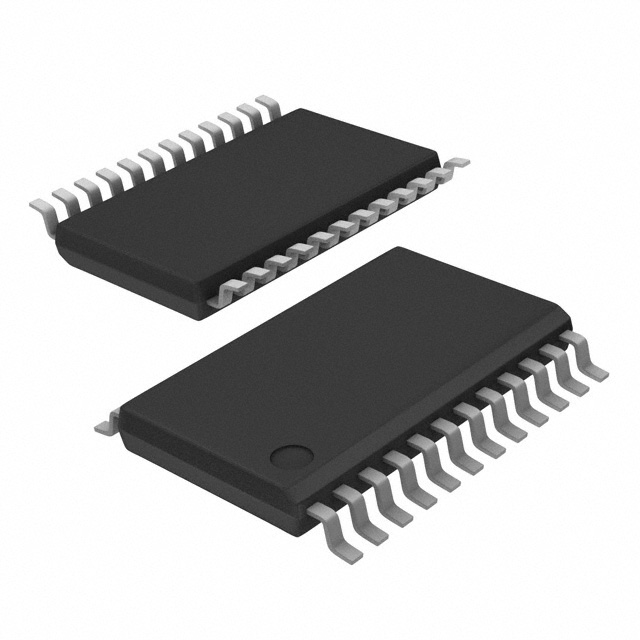

ADD8506WRUZ features: (1)Single-supply operation: 3.3 V to 6.5 V; (2)Rail-to-rail input, rail-to-rail output; (3)High output current: 380 mA; (4)Low supply current: 3.9 mA; (5)Stable with 1 nF loads; (6)Wide temperature range: -40℃ to +105℃; (7)24-lead, Pb-free, TSSOP package.

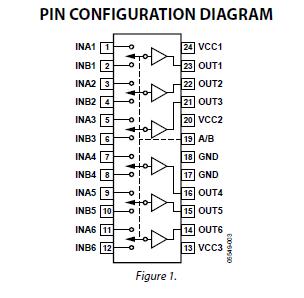

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADD8506WRUZ |
|
IC GAMMA BUFFER LCD 6CH 24TSSOP |
Data Sheet |
|
|
||||||
|
ADD8506WRUZ-REEL |
|
IC GAMMA BUFFER LCD 6CH 24TSSOP |
Data Sheet |
Negotiable |
|
||||||
|
ADD8506WRUZ-REEL7 |
|
IC GAMMA BUFFER LCD 6CH 24TSSOP |
Data Sheet |
|
|
||||||
