Product Summary
The ADG201HSKRZ is a monolithic CMOS device comprising four independently selectable SPST switches. The ADG201HSKRZ is designed on an enhanced LC2MOS process which gives very fast switching speeds and low RON. The ADG201HSKRZ also features break-before-make switching action for use in multiplexer applications and low charge injection for minimum transients on the output when switching the digital inputs.
Parametrics
ADG201HSKRZ absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: -0.3V, 25V; (3)VSS to GND: +0.3V, -25V; (4)power dissipation: 470mW; (5)operating temperature: -40 to +85℃; (6)storage temperature: -65 to +150℃; (7)lead temperature(soldering 10sec): 300℃.
Features
ADG201HSKRZ features: (1)50ns max switching time over full temperature range; (2)low ron(30Ω typ); (3)single supply specifications for +10.8V to 16.5V operation; (4)extended plastic temperature range(-40 to +85℃); (5)break-before-make switching; (6)low leakage(100pA typ); (7)44V supply max rating.

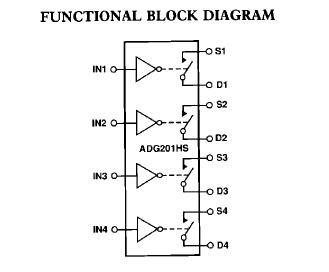

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADG201HSKRZ |
IC SWITCH QUAD SPST 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
ADG201HSKRZ-REEL |
IC SWITCH QUAD SPST 16SOIC |
Data Sheet |
|
|
