Product Summary
The ADG212AKRZ is a monolithic CMOS device comprising four independently selectable switches. The ADG212AKRZ is designed on an enhanced LC2MOS process which gives an incresed signal handling capability of ±15V. The switch also features high switching speeds and low RON. The ADG212AKRZ consists of four SPST switches. In multiplexer applications, all switches exhibit break-before-make switching action when driven simultaneously. Inherent in the design is low charge injuction for minimum transients when switching the digital inputs.
Parametrics
ADG212AKRZ absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: 25V; (3)VSS to GND: -25V; (4)VL to GND: -0.3V to 25V; (5)Analog inputs, Voltage at S, D: VSS -0.3V to VDD +0.3V; Continuous current, D or D: 30mA; 1ms duration, 10% duty cycle: 70mA.
Features
ADG212AKRZ features: (1)44V supply maximum rating; (2)±15V analog signal range; (3)Low Ron; (4)Low leakage; (5)Break before make switching; (6)Single supply operation possible; (7)Extended plastic temperature range: -40 to +85℃; (8)TTL/CMOS compatible; (9)Available in 16-lead DIP/SOIC and 20-lead PLCC package.

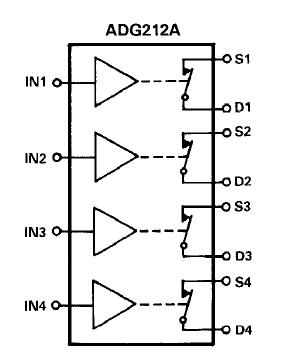

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADG212AKRZ |
IC SWITCH QUAD SPST 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||
