Product Summary

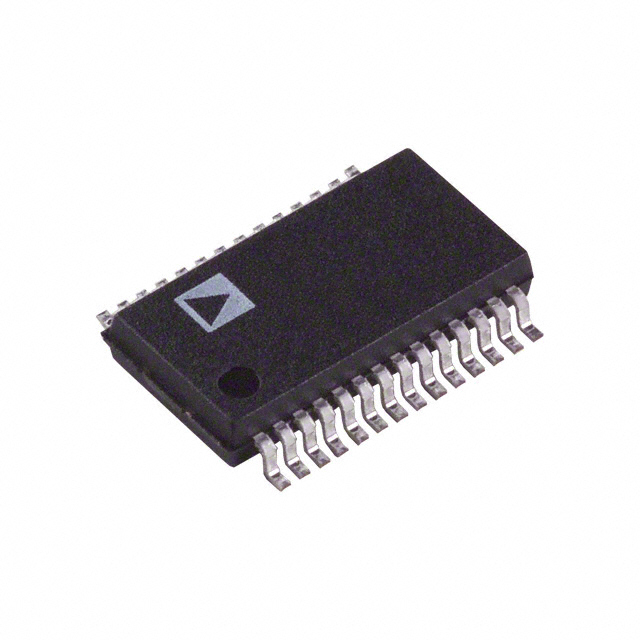

The ADG426BRSZ is a monolithic CMOS analog multiplexer. The ADG426BRSZ switch one of sixteen inputs to a common output as determined by the 4-bit binary address lines A0, A1, A2 and A3. The ADG426BRSZ has onchip address and control latches that facilitate microprocessor interfacing. An EN input on all devices is used to enable or disable the device. When disabled, all channels are switched OFF. The applications of the ADG426BRSZ include Audio and Video Routing, Automatic Test Equipment, Data Acquisition Systems, Battery Powered Systems, Sample Hold Systems, Communication Systems, Avionics.
Parametrics
ADG426BRSZ absolute maximum ratings: (1)VDD to VSS: +44 V; (2)VDD to GND: -0.3 V to +25 V; (3)VSS to GND: +0.3 V to -25 V; (4)Analog, Digital Inputs2: VSS -2 V to VDD + 2 V or 20 mA, Whichever Occurs First; (5)Continuous Current, S or D: 20 mA; (6)Peak Current, S or D: 40 mA (Pulsed at 1 ms, 10% Duty Cycle Max); (7)Operating Temperature Range; (8)Industrial (B Version): -40℃ to +85℃; (9)Extended (T Version): -55℃ to +125℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Junction Temperature: +150℃.
Features
ADG426BRSZ features: (1)44 V Supply Maximum Ratings; (2)VSS to VDD Analog Signal Range; (3)Low On Resistance (80 W max); (4)Low Power; (5)Fast Switching, tON < 160 ns; tOFF < 150 ns; (6)Break Before Make Switching Action; (7)Plug-In Upgrade for DG506A/ADG506A, DG507A/ADG507A, DG526/ADG526A; (8)ADG406/ADG407 are Plug-In Replacements for DG406/DG407.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

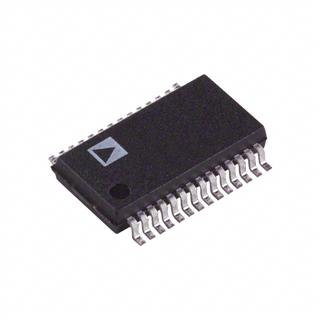

 ADG426BRSZ |
|
IC MULTIPLEXER 16X1 28SSOP |
Data Sheet |
|
|
||||||||||||||||
|
ADG426BRSZ-REEL |
|
IC MULTIPLEXER 16X1 28SSOP |
Data Sheet |
|
|
||||||||||||||||
