Product Summary
The SSM2143SZ-REEL is an integrated differential amplifier intended to receive balanced line inputs in audio applications requiring a high level of immunity from common-mode noise. The SSM2143SZ-REEL provides a typical 90 dB of common-mode rejection (CMR), which is achieved by laser trimming of resistances to better than 0.005%. The SSM2143SZ-REEL input stage is designed to handle input signals as large as +28 dBu at G = 1/2. Although primarily intended for G = 1/2 applications, a gain of 2 can be realized by reversing the +IN/–IN and SENSE/REFERENCE connections.
Parametrics
SSM2143SZ-REEL absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Common-Mode Input Voltage:±22 V; (3)Differential Input Voltage:±44 V; (4)Output Short Circuit Duration:Continuous; (5)Operating Temperature Range:–40℃ to +85℃; (6)Storage Temperature Range:–65℃ to +150℃; (7)Junction Temperature:+150℃; (8)Lead Temperature (Soldering, 60 sec):+300℃; (9)Thermal Resistance:43℃/W.
Features
SSM2143SZ-REEL features: (1)High Common-Mode Rejection: DC: 90 dB typ, 60 Hz: 90 dB typ, 20 kHz: 85 dB typ; (2)Ultralow THD: 0.0006% typ @ 1 kHz; (3)Fast Slew Rate: 10 V/μs typ; (4)Wide Bandwidth: 7 MHz typ (G = 1/2); (5)Two Gain Levels Available: G = 1/2 or 2; (6)Low Cost.

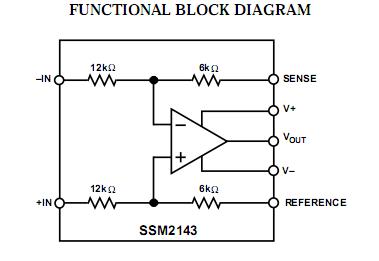

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SSM2143SZ-REEL |
|
IC AUDIO RX MONO AB DIFF 8SOIC |
Data Sheet |
|
|
||||||
