Product Summary

The ADM242ARZ is a high-speed RS-232 line driver/receiver offering transmission rates up to 200 kB/s. Operating from a single 5 V power supply, a highly efficient on-chip charge pump using small (0.1 uF) external capacitors allows RS-232 bipolar levels to be developed. Two RS-232 drivers and two RS-232 receivers are provided on each device. The ADM242ARZ is fabricated on BiCMOS, an advanced mixed technology process that combines low power CMOS with highspeed bipolar circuitry. This allows for transmission rates up to 200 kB/s, yet minimizes the quiescent power supply current to under 5 mA.

Parametrics

ADM242ARZ absolute maximum ratings: (1)VCC: 6 V; (2)V+: (VCC － 0.3 V)to +13 V; (3)V－: +0.3 V to －13 V; (4)Power Dissipation R-16W: 400 mW, (Derate 7 mW/°C above 70°C)θJA, Thermal Impedance: 80°CW; (5)Power Dissipation N-18: 400 mW.

Features

ADM242ARZ features: (1)Single 5 V Power Supply; (2)Meets All EIA-232-E and V.28 Specifications; (3)Two Drivers and Two Receivers; (4)On-Board DC-DC Converters; (5)±9 V Output Swing with 5 V Supply; (6)±30 V Receiver Input Levels; (7)Pin Compatible with MAX222/MAX232A/MAX242.

Diagrams

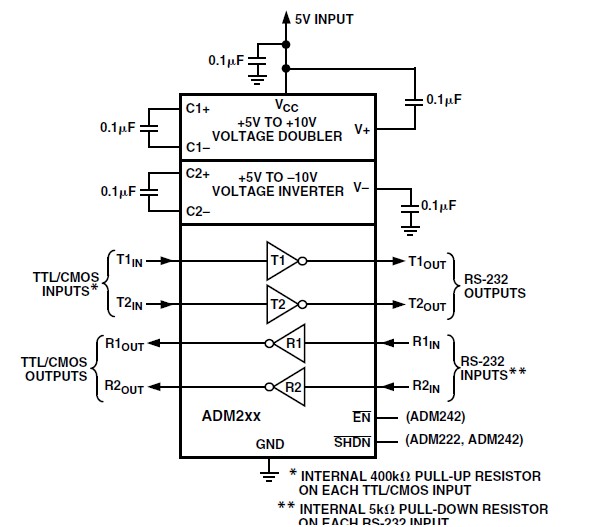

ADM242ARZ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

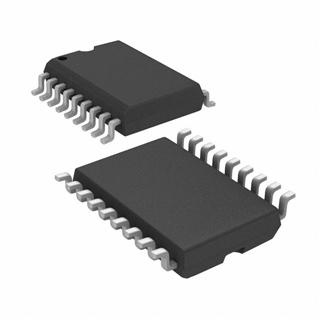

ADM242ARZ
ADM242ARZ

IC TX/RX RS-232 W/EN/SD 18SOIC
Data Sheet
0-1: $2.07
1-10: $1.85
10-100: $1.52
100-250: $1.37
250-500: $1.23
500-1000: $1.04
1000-2500: $0.99

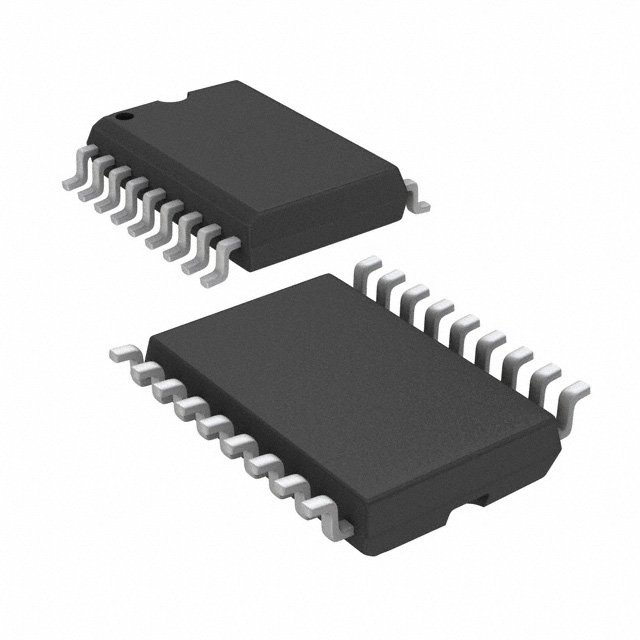

ADM242ARZ-REEL
ADM242ARZ-REEL

IC TXRX RS-232 2:2 5V LP 18SOIC
Data Sheet
0-1000: $1.04
