Product Summary
The ADM706SARZ is a microprocessor supervisory circuit.The ADM706SARZ is suitable for monitoring either 3 V or 3.3 V power supplies. The ADM706SARZ provides power－supply monitoring circuitry that generate a reset output during power－up, power－down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. This is activated if the watchdog input has not been toggled within 1.6 seconds.
Parametrics
ADM706SARZ absolute maximum ratings: (1)VCC: －0.3 V to +6 V; (2)All Other Inputs: －0.3 V to VCC + 0.3 V; (3)Digital Output Current: 20 mA; (4)Power Dissipation, N-8 (PDIP): 727 mW, θJA Thermal Impedance: 135℃/W ; (5)Power Dissipation, R-8 (SOIC): 470 mW , θJA Thermal Impedance: 110℃/W.
Features
ADM706SARZ features: (1)Voltage monitor for power－fail or low battery warning; (2)Guaranteed valid with VCC = 1 V RESET; (3)Superior upgrade for MAX706P/R/S/T, MAX708R/S/T; (4)100 uA quiescent current; (5)200 ms reset pulse width; (6)Debounced manual reset input ()MR.

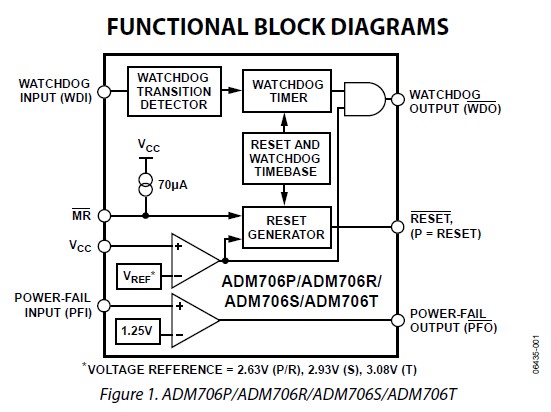

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM706TAR |
|
IC SUPERVISOR MPU 3.08 WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM706TAR-REEL |
|
IC SUPERVISOR MPU 3.08V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM706TARZ |
|
IC SUPERVISOR MPU 3.08 WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
ADM706TARZ-REEL |
|
IC SUPERVISOR MPU 3.08V WD 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
