Product Summary

The OPA2604APG4 is a dual, FET-input operational amplifier designed for enhanced AC performance. Very low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance. The low-noise FET input of the OPA2604APG4 provides wide dynamic range, even with high source impedance. Offset voltage is laser-trimmed to minimize the need for interstage coupling capacitors. The applications of the OPA2604APG4 are professional audio equipment, pcm dac I/V converter, spectral analysis equipment, active filters, transducer amplifier, data acquisition.

Parametrics

OPA2604APG4 absolute maximum ratings: (1)Power Supply Voltage:±25V; (2)Input Voltage:(V–)–1V to (V+)+1V; (3)Output Short Circuit to Ground:Continuous; (4)Operating Temperature:–40℃ to +100℃; (5)Storage Temperature:–40℃ to +125℃; (6)Junction Temperature:+150℃; (7)Lead Temperature (soldering, 10s):+300℃.

Features

OPA2604APG4 features: (1)low distortion: 0.0003% at 1kHz; (2)low noise: 10nV/√Hz; (3)high slew rate: 25V/μs; (4)wide gain-bandwidth: 20MHz; (5)unity-gain stable; (6)wide supply range: VS = ±4.5 to ±24V; (7)drives 600Ω loads.

Diagrams

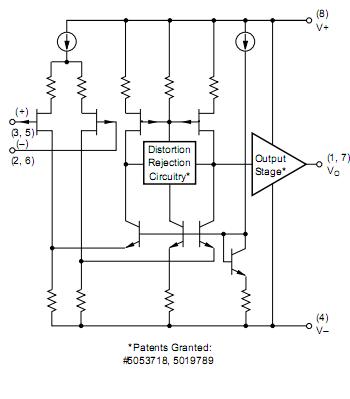

OPA2604APG4 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

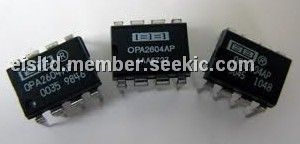

OPA2604APG4
OPA2604APG4

Texas Instruments

Operational Amplifiers - Op Amps Dual FET-Input Low Distortion

Data Sheet

0-1: $2.56
1-10: $2.30
10-25: $2.05
25-50: $1.93
