Product Summary
The ADP3120AJRZ-RL is a dual bootstrapped, 12V MOSFET driver with output disable. It is optimized to drive the gates of both high-side and low-side power MOSFETs in a synchronous buck converter. The high-side and low-side driver is capable of driving a 3000 pF load with a 45 ns propagation delay and a 25 ns transition time.
Parametrics
ADP3120AJRZ-RL absolute maximum ratings: (1)operating ambient temperature: -20 to 85℃; (2)operating junctiontemperature: -20 to 150℃; (3)storage temperature range: -65 to 150℃; (4)lead temperature: 260℃; (5)JEDEC moisture sensitivity level: 1.
Features
ADP3120AJRZ-RL features: (1)All-In-One Synchronous Buck Driver; (2)Bootstrapped High−Side Drive; (3)One PWM Signal Generates Both Drives; (4)Anticross Conduction Protection Circuitry; (5)OD for Disabling the Driver Outputs Meets CPU VR Requirement when Used with Patented FlexMode Controller; (6)These are Pb-Free Devices.

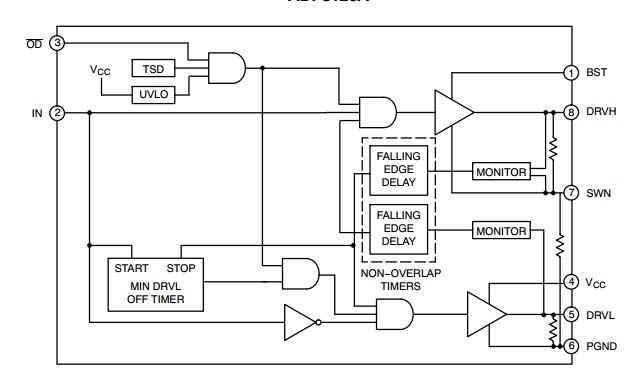

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADP3120AJRZ-RL |
ON Semiconductor |
Power Driver ICs 2 12V FET DRVR W/OUT DIS |
Data Sheet |
Negotiable |
|
||||||
