Product Summary

The ADUM1410BRWZ is a quad-channel digital isolator. Its applications include general-purpose multichannel isolation, SPI interface/data converter isolation, industrial field bus isolation.

Parametrics

ADUM1410BRWZ absolute maximum ratings: (1)storage temperature: -65 to 150℃; (2)ambient operating temperature: -40 to 105℃; (3)supply voltage: -0.5 to 7V; (4)Output voltage: -0.5 to VDDO+0.5V; (5)Average output current: -18 to 18mA.

Features

ADUM1410BRWZ features: (1)low power operation; (2)bidirectional communication; (3)3V/5V level translation; (4)high temperature operation: 105℃; (5)high common-mode transient immunity; (6)safety and regulatory approvals.

Diagrams

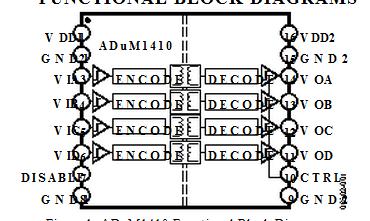

ADUM1410BRWZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADUM1410BRWZ
ADUM1410BRWZ

IC ISOLATOR DGTL 4CH UNI 16-SOIC
Data Sheet
0-1: $3.69
1-10: $3.29
10-100: $2.70
100-250: $2.44
250-500: $2.19
500-1000: $1.84
1000-2500: $1.76
ADUM1410BRWZ-RL
ADUM1410BRWZ-RL

IC DIGITAL ISOLATOR QUAD 16-SOIC
Data Sheet
0-1000: $1.84
