Product Summary

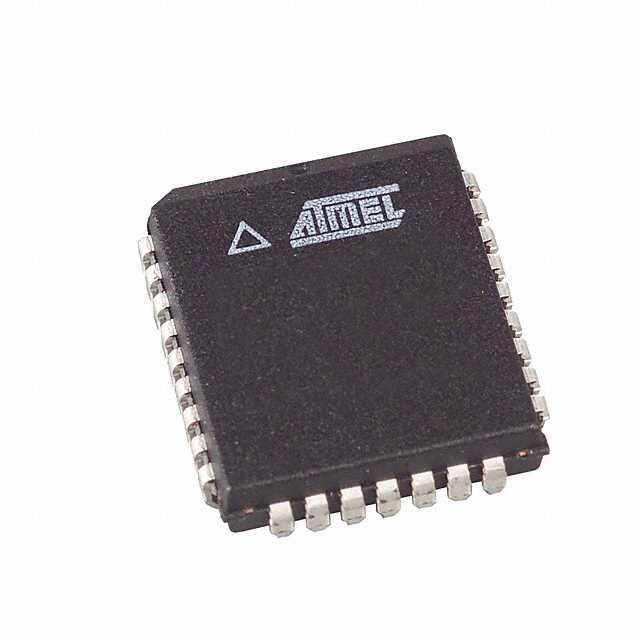

The AT29C010A-12JI is a CMOS flash memory. Its endurance is such that any sector can typically be written to in excess of 10000 times.
Parametrics
AT29C010A-12JI absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V; (5)voltage on OE and A9 with respect to ground: -0.6 to 13.5V.
Features
AT29C010A-12JI features: (1)fast read access time-70ns; (2)5V only reprogramming; (3)sector program operation; (4)two 8KB boot blocks with lockout; (5)internal program control and timer; (6)hardware and software data protection.

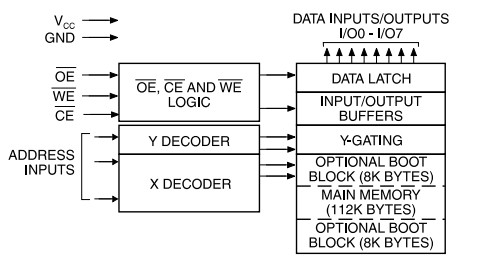

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AT29C010A-12JI |
![]() Atmel |
![]() Flash 1M(128Kx8) 5V ONLY- 120NS IND TEMP |
![]() Data Sheet |
![]() Negotiable |
|
||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
![]() |
![]() AT29BV010A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() AT29BV010A-12JC |
![]() Atmel |
![]() Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() AT29BV010A-12JI |
![]() Atmel |
![]() Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() AT29BV010A-12JU |
![]() Atmel |
![]() Flash 1M(128Kx8) 2.7V - 120NS IND TEMP |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() AT29BV010A-12TC |
![]() Atmel |
![]() Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
![]() Data Sheet |
![]() Negotiable |
|
|||||
![]() AT29BV010A-12TI |
![]() Atmel |
![]() Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
![]() Data Sheet |
![]() Negotiable |
|
