Product Summary

The AT45DB161B-TI-2.5 is a 2.5V only or 2.7V only dataflash. It is ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.

Parametrics

AT45DB161B-TI-2.5 absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V.

Features

AT45DB161B-TI-2.5 features: (1)single 2.5V to 3.6V or 2.7V 3.6V supply; (2)20MHz max clock frequency; (3)page program operation; (4)supports page and block erase operations; (5)low-power dissipations.

Diagrams

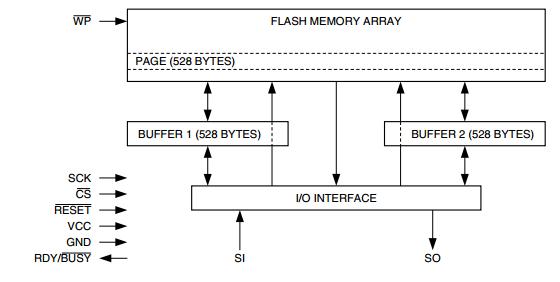

AT45DB161B-TI-2.5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

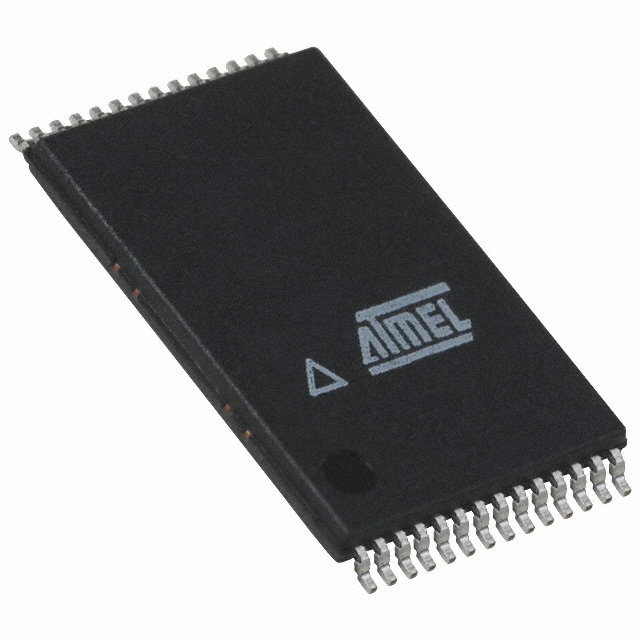

AT45DB161B-TI-2.5
AT45DB161B-TI-2.5

IC FLASH 16MBIT 20MHZ 28TSOP
Data Sheet
Negotiable
