Product Summary
The AT45DB161D-TU is a 2.5V or 2.7V dataflash. It is ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications.
Parametrics
AT45DB161D-TU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V.
Features
AT45DB161D-TU features: (1)single 2.5V to 3.6V or 2.7V 3.6V supply; (2)20MHz max clock frequency; (3)page program operation; (4)supports page and block erase operations; (5)low-power dissipations.

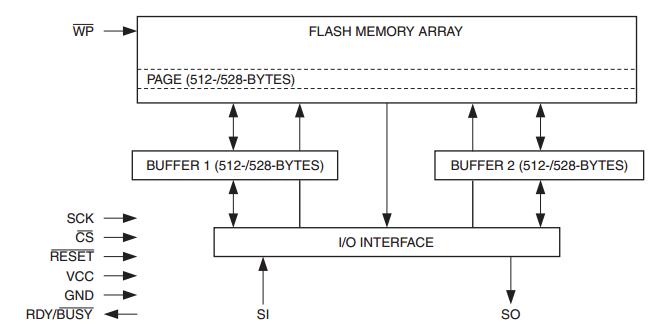

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

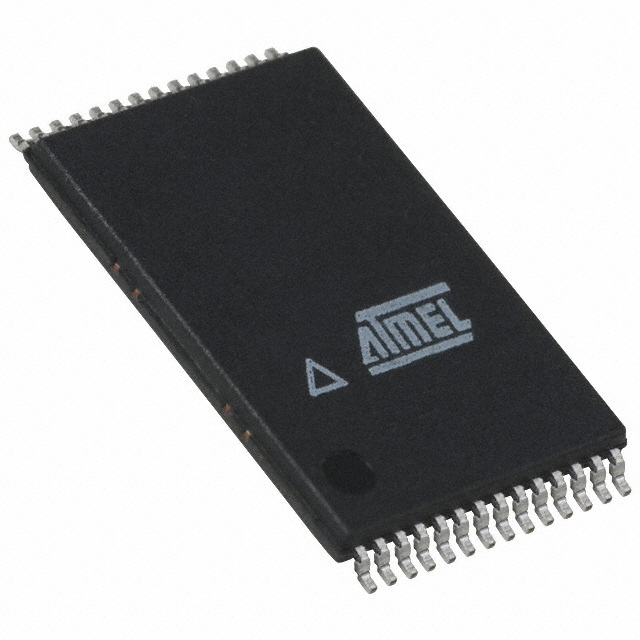

 AT45DB161D-TU |
Atmel |
Flash 16M 28 I/O Pins SPI 528B 2.5V 2.7V |
Data Sheet |
Negotiable |
|
||||||||||||
|
AT45DB161D-TU-2.5 |
Atmel |
Flash 16MB SERIAL - IND TEMP |
Data Sheet |
|
|
||||||||||||
