Product Summary
The AT49BV040A-70JI is a 2.7V battery-voltage flash memory. It offers access times to 70ns with power dissipation of just 54mW over the commercial temperature range.
Parametrics
AT49BV040A-70JI absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage with respect to ground: -0.6 to 6.25V; (4)all output voltage with respect to ground: -0.6 to VCC+0.6V; (5)voltage on OE with respect to ground: -0.6 to 13.5V.
Features
AT49BV040A-70JI features: (1)single supply for read and write: 2.7 to 3.6V; (2)Fast read access time-70ns; (3)internal program control and timer; (4)fast erase cycle time; (5)hardware data protection; (6)low power dissipation.

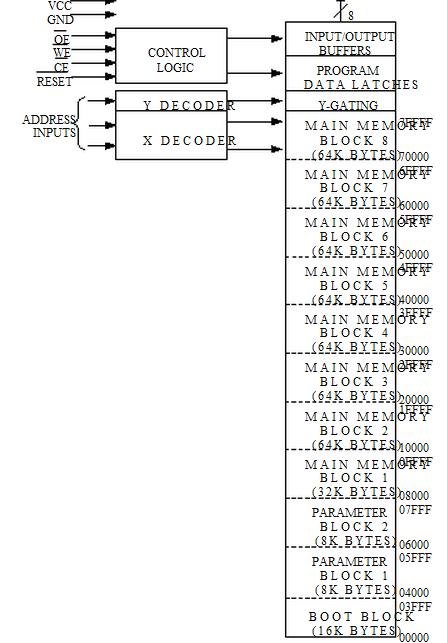

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT49BV040A-70JI |
|
IC FLASH 4MBIT 70NS 32PLCC |
Data Sheet |
Negotiable |
|
||||||||||||
