ATF16V8B-10JC

ATF16V8B-10PC, High Performance Flash PLD, sop, 7V, 35mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: ATF16V8B-10JC

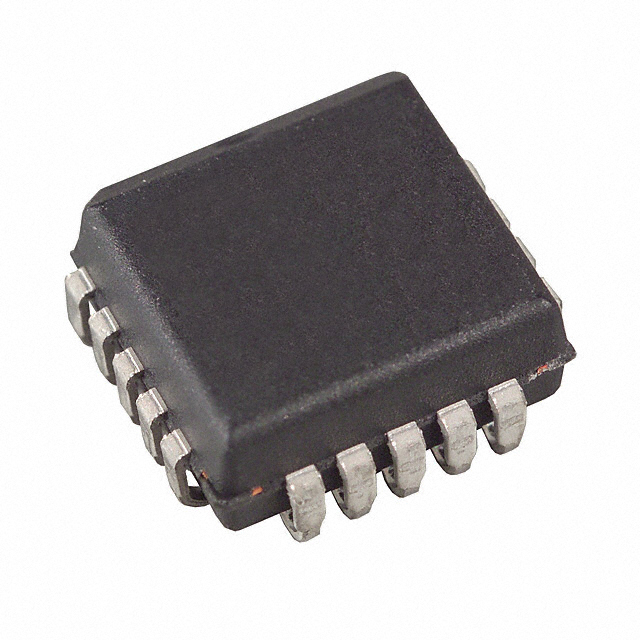

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:ATF16V8B-10JC
US $0.15 - 2.40
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ATF16V8B-10PC is a high performance CMOS (Electrically Erasable) Programmable Logic Device (PLD). The ATF16V8B-10PC utilizes Atmel’s proven electrically erasable Flash memory technology. Speeds down to 7.5 ns are offered. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges. Several low power options allow selection of the best solution for various types of power-limited applications. Each of these options significantly reduces total system power and enhances system reliability.

Parametrics

ATF16V8B-10PC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -2.0V to +7.0V; (4)Voltage on Input Pins with Respect to Ground During Programming: -2.0V to +14.0V; (5)Programming Voltage with Respect to Ground: -2.0V to +14.0V.

Features

ATF16V8B-10PC features: (1)Industry Standard Architecture, Emulates Many 20-Pin PALs; Low Cost Easy-to-Use Software Tools; (2)High Speed Electrically Erasable Programmable Logic Devices, 7.5 ns Maximum Pin-to-Pin Delay; (3)Several Power Saving Options; (4)CMOS and TTL Compatible Inputs and Outputs, Input and I/O Pull-Up Resistors; (5)Advanced Flash Technology, Reprogrammable; 100% Tested; (6)High Reliability CMOS Process, 20 Year Data Retention; 100 Erase/Write Cycles; 2,000V ESD Protection; 200 mA Latchup Immunity; (7)Commercial, and Industrial Temperature Ranges; (8)Dual-in-Line and Surface Mount Packages in Standard Pinouts.
