BTM7741G

Product Summary

The BTM7741G is a part of the TrilithIC family containing three dies in one package: One double high-side switch and two low-side switches. The sources are connected to individual pins, so the BTM7741G can be used in H-bridge- as well as in any other configuration. Both the double high-side and the two low-side switches of the BTM7741G are manufactured in MART SIPMOS technology which combines low Rds on vertical DMOS power stages with CMOS circuitry for control, protection and diagnosis.

Parametrics

BTM7741G absolute maximum ratings: (1) High-Side-Switches (Pins DHVS, IH1, 2 and SH1) , 2): a) Supply voltage (Vs) : -0.3 to 42V; b) Supply voltage for full short circuit protection Vs (scp) : 28V; c) HS-drain current (Is) : -7A (Ta=25°C; tp < 100 ms) ; d) HS-input current (Iih) : -5 to 5mA (Pin IH1 and IH) ; e) HS-input voltage (Vih) : -10 to 16V (VPin IH1 and IH) ; (2) Status Output ST: a) Status pull up voltage (Vst) : -0.3 to 5.4V; b) Status Output current (Ist) : -5 to 5mA (Pin ST) ; (3) Low-Side-Switches (Pins DL1, 2, IL1, 2 and SL1, 2): a) Drain-Source-Clamp voltage (Vds: 42V (V=0V; Id≤ 1mA) ; b) Supply voltage for short circuit protection: Vdsl (scp) : 30V (Vil=5V) , 20V (Vil=10V) ; c) LS-drain current: Idl: -7A (Ta=25°C; tp<100ms) ; d) LS-input voltage (Vil) :-0.3 to 10V; (3) Temperatures (Tj) : -40 to 150°C, Storage temperature: -55 to 150°C; (4) ESD Protection: Input LS-Switch (Vesd) : 2kV, Input HS-Switch: 1kV, Status HS-Switch (Vesd) :1kV, Output LS and HS-Switch: 8kV (Vall other pins connected to Ground) .

Features

BTM7741G features: (1) Quad D-MOS switch driver; (2) Free configurable as bridge or quad-switch; (3) Optimized for DC motor management applications; (4) Low Rds on High side: 110 mΩ typ. @25°C, 270 mΩ max. @150°C, Low side: 100 mΩ typ. @25°C, 230 mΩ max. @150°C; (5) Peak current: typ. 8A @ 25°C; (6) Very low quiescent current: typ. 5 μA @ 25°C; (7) Small outline, enhanced power PG-DSO-package; (8) Operates up to 40 V; (9) PWM frequencies up to 1 kHz; (10) Status flag diagnosis; (11) Short-circuit-protection; (12) Overtemperature shut down with hysteresis; (13)Internal clamp diodes; (14) Under-voltage detection with hysteresis; (15) Green Product (RoHS compliant) ; (16) AEC Qualified.

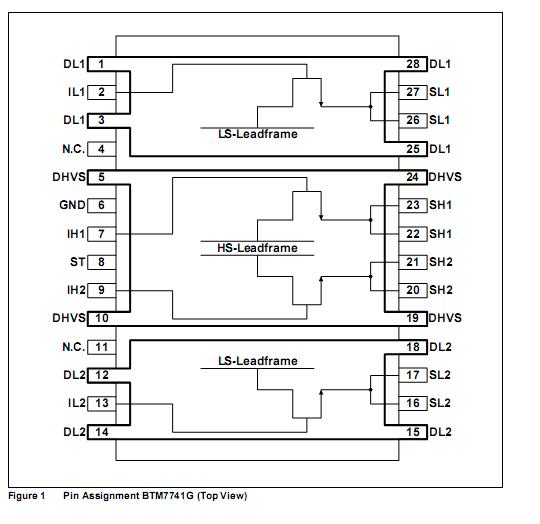

Diagrams
