BTS7710G

Product Summary

The BTS7710G is a part of the TrilithIC family containing three dies in one package: One double high-side switch and two low-side switches. The sources are connected to individual pins, so the BTS 7710 G can be used in H-bridge- as well as in any other configuration. The BTS7710G double high-side is manufactured in SMART SIPMOS technology which combines low RDS ON vertical DMOS power stages with CMOS control circuitry. And high-side switch of BTS7710G is fully protected and contains the control and diagnosis circuitry.

Parametrics

TS7710G absolute maximum ratings: (1) VS: -0.3V; 42V; (2) VS (SCP) : 28V; (3) IS: – 8A; 8A (TA = 25°C; t < 100 ms, internally limited; (4) IIH:– 5mA ; 5 mA (Pin IH1 and IH2) ; (5) VIH:– 10 ; 10V (Pin IH1 and IH2) ; (6) VST: – 0.3 ; 5.4 V; (7) IST: – 5:5 mA (Pin ST) ; (7) VDSL: 55V (VIL=0V; ID ≤1 mA) ; (8) IDL: –8; 8A ( t < 100 ms) ; – 11A ( t < 10 ms) ; – 24A (t < 1 ms) ; (9) VIL: -20V; 20V (Pin IL1 and IL2) ; (10) Tj: -40°C, 150°C ; (10) Tstg: -50°C; 155°C; (11) RthjCL: 20K/W (measured to pin 3 or 12) ; (12) RthjCH: 20K/W (measured to pin 19) ; (13) Rthja: 60K/W (device soldered to reference PCB with 6 cm2 cooling area) ;(14) VESD: 0.5 kV; (15) VESD: 1kV; (16) VESD: 2kV; (17) 8kV (all other pins connected to Ground) .

Features

BTS7710G features: (1) Quad D-MOS switch driver; (2) Free configurable as bridge or quad-switch; (3) Optimized for DC motor management applications; (4) Low RDS ON: 70 mτ high-side switch, 40 mτ low-side switch (typical values @ 25°C); (5) Maximum peak current: Maximum peak current: typ. 15A @ 25°C; (6) Very low quiescent current: typ. 5 ←A @ 25°C; (7) Small outline, enhanced power P-DSO-package; (8) Load and GND-short-circuit-protection; (9) Operates up to 40 V; (10) Status flag diagnosis; (11) Overtemperature shut down with hysteresis; (12) Internal clamp diodes; (13) Isolated sourc es for external current sensing; (14) Under-voltage detection with hysteresis; (15) PWM frequencies up to 50 kHz.

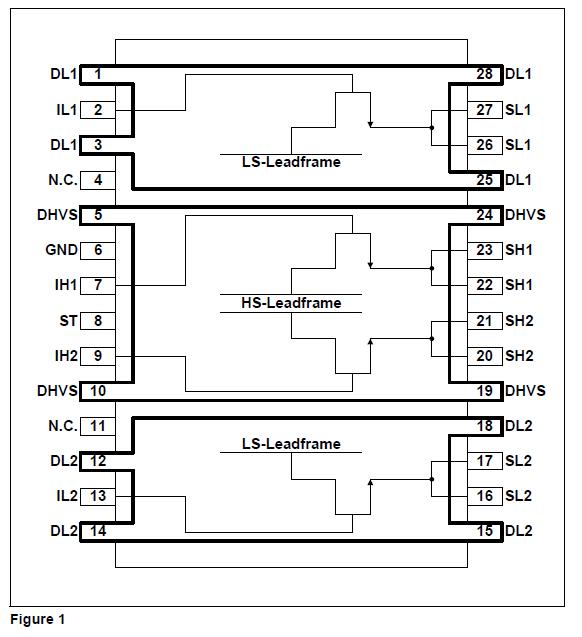

Diagrams
