Product Summary

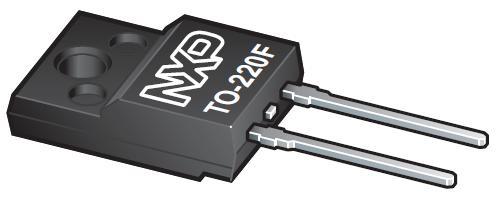

The BYC8X-600 is a Hyperfast epitaxial rectifier diode. The device in a SOD113 (2-lead TO-220F) plastic package. The applications of the BYC8X-600 include Continuous Current Mode (CCM) Power Factor Correction (PFC), Half-bridge/full-bridge switched-mode power supplies, Half-bridge lighting ballasts.
Parametrics
BYC8X-600 absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 600 V; (2)crest working reverse voltage, VRWM: 600 V; (3)average forward current, IF(AV): 8 A; (4)repetitive peak forward current, IFRM: 16A; (5)non-repetitive peak forward current, tp = 10 ms; sine-wave pulse; Tj(init) = 25℃, IFSM: 80 A; tp = 8.3 ms; sine-wave pulse; Tj(init) = 25℃, IFSM: 88 A; (6)storage temperature, Tstg: -40 to 150℃; (7)junction temperature, Tj: 150℃.
Features
BYC8X-600 features: (1)Low reverse recovery current and low thermal resistance; (2)Reduces switching losses in associated MOSFET.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BYC8X-600,127 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) Diode Ult Fast Recov Rectifier 600V 8A |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
BYC8-600 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) RAIL PWRDIODE |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BYC8-600,127 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) RAIL PWRDIODE |
Data Sheet |
|
|
||||||||||||
 |
BYC8B-600 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BYC8B-600 /T3 |
NXP Semiconductors |
Rectifiers TAPE13 PWRDIODE |
Data Sheet |
Negotiable |
|
||||||||||||
|
BYC8B-600,118 |
NXP Semiconductors |
Rectifiers TAPE13 PWRDIODE |
Data Sheet |
|
|
||||||||||||
 |
BYC8D-600,127 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) PWR 600 V 8 A |
Data Sheet |
|
|
||||||||||||
