CD4514BCN

CD4514BCN, 4-Bit Latched/4-to-16 Line Decoder, 24-DIP, 18V, 8.8mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~1.60

PartNumber:: CD4514BCN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-08

From Other Seller

Part Number:CD4514BCN
US $0.20 - 1.60
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

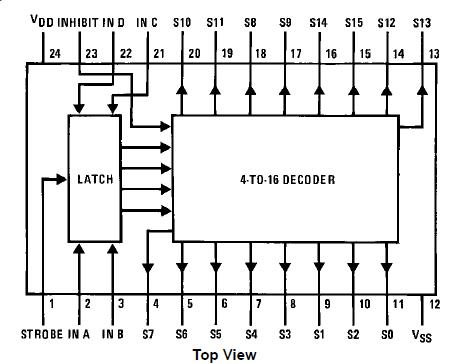

The CD4514BCN is a 4-to-16 line decoder with latched inputs implemented with complementary MOS (CMOS) circuits constructed with N- and P-channel enhancement mode transistors. The CD4514BCN is primarily used in decoding applications where low power dissipation and/or high noise immunity is required. The CD4514BCN (output active high option) presents a logical “1” at the selected output, whereas the CD4514BCN presents a logical “0” at the selected output. The input latches are R–S type flip-flops, which hold the last input data presented prior to the strobe transition from “1” to “0”. This input data is decoded and the corresponding output is activated. An output inhibit line is also available.

Parametrics

CD4514BCN absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5V to +18V; (2)Input Voltage (VIN): -0.5V to VDD + 0.5V; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Power Dissipation (PD), Dual-In-Line: 700 mW; Small Outline: 500 mW; (5)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.

Features

CD4514BCN features: (1)Wide supply voltage range: 3.0V to 15V; (2)High noise immunity: 0.45 VDD (typ.); (3)Low power TTL: fan out of 2; compatibility: driving 74L; (4)Low quiescent power dissipation: 0.025 μW/package @ 5.0 VDC; (5)Single supply operation; (6)Input impedance = 10Ω typically; (7)Plug-in replacement for MC14514, MC14515.
