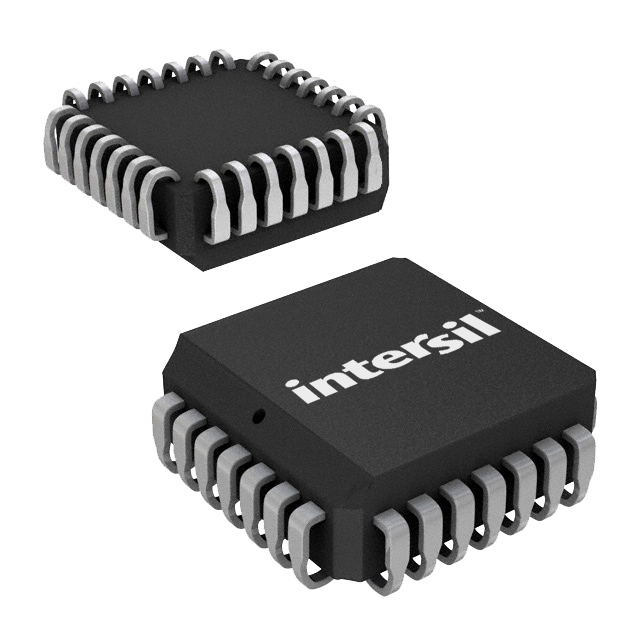

CS82C54

CMOS Programmable Interval Timer, 8MHZ, +8.0V, 28PLCC, CS82C54

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: CS82C54

Brand:: Harris Corporation - Harris | Pack: PLCC | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CS82C54
US $0.15 - 2.40
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

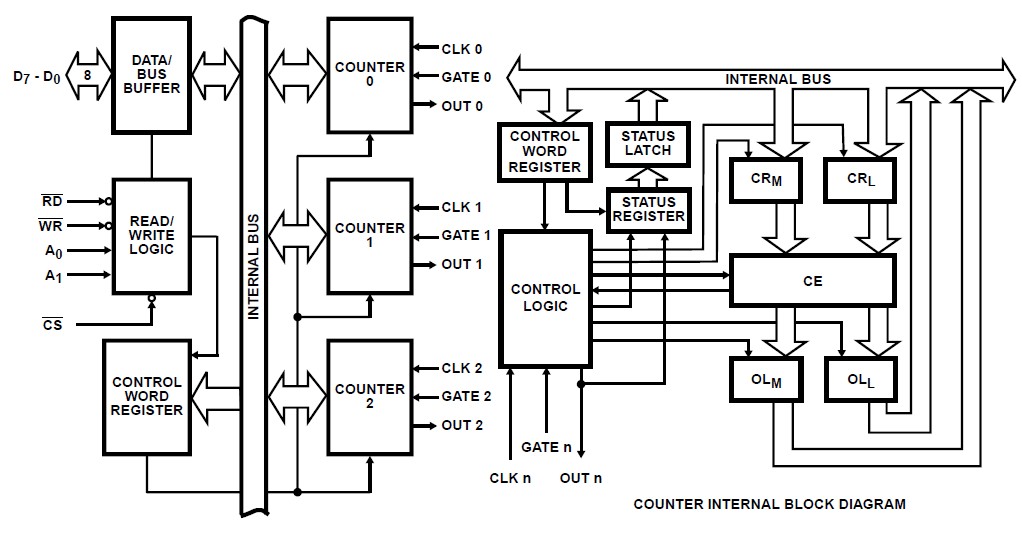

The Intersil CS82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The CS82C54 has three independently programmable andfunctional 16-bit counters, each capable of handling clock input frequencies of up to 8MHz (82C54) or 10MHz (82C54-10) or 12MHz (82C54-12). The high speed and industry standard configuration of the CS82C54 make it compatible with the Intersil 80C86, 80C88, and 80C286 CMOS microprocessors along with many other industry standard processors.

Parametrics

CS82C54 absolute maximum ratings: (1)Junction Temperature Range, TJ: -40 to +150 ℃; (2)Storage Temperature Range, TSTORAGE: -65 to +150 ℃; (3)Package Thermal Resistance, Junction to Case, RθJC: 45℃/W; (4)Junction to Ambient, RθJA: 165℃/W; (5)Lead Temperature Soldering: Reflow: 230 Peak ℃; (6)ESD, Human Body Model: 1.2 kV.
