CY7C68013-100AC

CY7C68013-100AC, EZ-USB FX2 USB Microcontroller, 100-LQFP, 3.3V, 16K x 8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~2.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~2.40

PartNumber:: CY7C68013-100AC

Brand:: Cypress Semiconductor - Cypress | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:CY7C68013-100AC
US $0.15 - 2.40
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

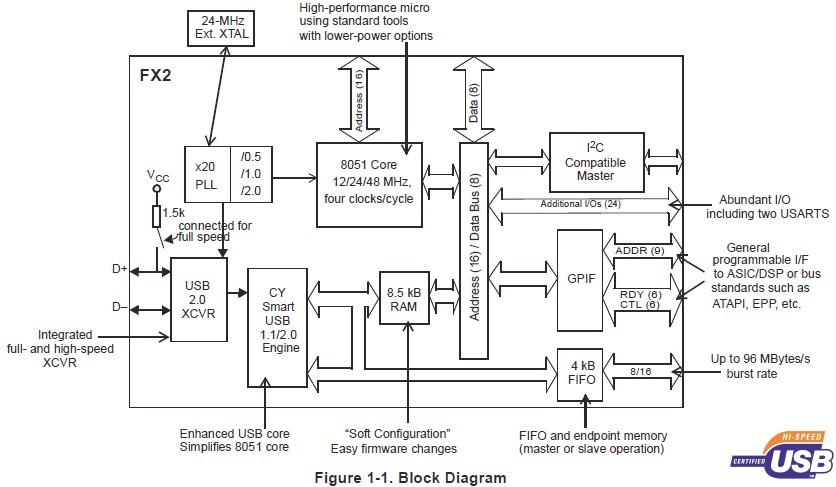

The CY7C68013-100AC is a EZ-USB F×2 USB microcontroller. It is the first USB 2.0 integrated microcontroller. By integrating the USB 2.0 transceiver, SIE, enhanced 8051 microcontroller, and a programmable peripheral interface in a single chip, Cypress has created a very cost-effective solution that provides superior time-to-market advantages. The applications of the CY7C68013-100AC include: DSL modems, ATA interface, Memory card readers, Legacy conversion devices, Cameras, Scanners, Home PNA, Wireless LAN, MP3 players, Networking.

Parametrics

CY7C68013-100AC absolute maxing ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage to Ground Potential: -0.5V to +4.0V; (4)DC Input Voltage to Any Input Pin: 5.25V; (5)DC Voltage Applied to Outputs in High Z State: -0.5V to VCC + 0.5V; (6)Power Dissipation: 936mW; (7)Static Discharge Voltage: > 2000V; (8)Max Output Current, per I/O port: 10mA; (9)Max Output Current, all five I/O ports (128- and 100-pin packages): 50mA.

Features

CY7C68013-100AC features: (1)Supports bus-powered applications by using renumeration; (2)3.3V operation; (3)Smart Serial Interface Engine; (4)Vectored USB interrupts; (5)Separate data buffers for the SETUP and DATA portions of a CONTROL transfer; (6)Integrated I2C-compatible controller, runs at 100 or 400kHz; (7)48-MHz, 24-MHz, or 12-MHz 8051 operation; (8)Special autovectors for FIFO and GPIF interrupts; (9)Up to 40 general-purpose I/Os.
