Product Summary
The DAC8562FSZ is a complete, parallel input, 12-bit, voltage output DAC designed to operate from a single +5 volt supply. Built using a CBCMOS process, these monolithic DACs offer the user low cost, and ease-of-use in +5 volt only systems. Included on the chip, in addition to the DAC, is a rail-to-rail amplifier, latch and reference. The reference (REFOUT) is trimmed to 2.5 volts, and the on-chip amplifier gains up the DAC output to 4.095 volts full scale. The user needs only supply a +5 volt supply. The DAC8562FSZ is coded straight binary. The op amp output swings from 0 to +4.095 volts for a one millivolt per bit resolution, and is capable of driving ±5 mA. Built using low temperature- coefficient silicon-chrome thin-film resistors, excellent linearity error over temperature has been achieved as shown below in the linearity error versus digital input code plot.
Parametrics
DAC8562FSZ absolute maximum ratings: (1)VDD to DGND and AGND: -0.3 V, +10 V; (2)Logic Inputs to DGND: -0.3 V, VDD + 0.3 V; (3)VOUT to AGND: -0.3 V, VDD + 0.3 V; (4)VREFOUT to AGND: -0.3 V, VDD + 0.3 V; (5)AGND to DGND: -0.3 V, VDD; (6)IOUT Short Circuit to GND: 50 mA; (7)Maximum Junction Temperature (TJ max): 150℃; (8)Operating Temperature Range: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (Soldering, 10 secs): +300℃.
Features
DAC8562FSZ features: (1)Complete 12-Bit DAC; (2)No External Components; (3)Single +5 Volt Operation; (4)1 mV/Bit with 4.095 V Full Scale; (5)True Voltage Output, 65 mA Drive; (6)Very Low Power –3 mW.

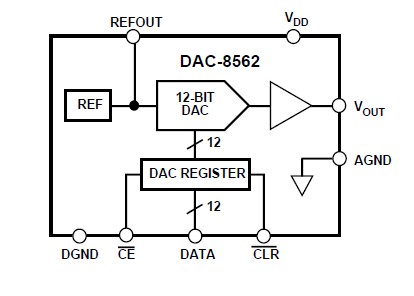

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DAC8562FSZ |
|
IC DAC 12BIT PARALLEL 5V 20SOIC |
Data Sheet |
|
|
||||||||||||||||
|
DAC8562FSZ-REEL |
|
IC DAC 12BIT PARALLEL 5V 20-SOIC |
Data Sheet |
|
|
||||||||||||||||
