Product Summary

The DG407DJ is a monolithic CMOS analog multiplexer. The DG407DJ is drop-in replacements for the popular DG506A and DG507A series devices. The device includes an array of sixteen analog switches, a TTL and CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds, and an ENABLE input for device selection when several multiplexers are present. The DG407DJ features lower signal ON resistance (<100W) and faster transition time (tTRANS < 300ns) compared to the DG506A and DG507A. Charge injection has been reduced, simplifying sample and hold applications. The applications of the DG407DJ include Battery Operated Systems, Data Acquisition, Medical Instrumentation, Hi-Rel Systems, Communication Systems, Automatic Test Equipment.

Parametrics

DG407DJ absolute maximum ratings: (1)V+ to V-: 44.0V; (2)GND to V-: 25V; (3)Digital Inputs, VS, VD: (V-) -2V to (V+) +2V or 20mA, Whichever Occurs First; (4)Continuous Current (Any Terminal): 30mA; (5)Peak Current, S or D (Pulsed 1ms, 10% Duty Cycle Max): 100mA; (6)Temperature Range: -40℃ to 85℃.

Features

DG407DJ features: (1)ON-Resistance (Max): 100W; (2)Low Power Consumption (PD): <1.2mW; (3)Fast Transition Time (Max): 300ns; (4)Low Charge Injection; (5)TTL, CMOS Compatible; (6)Single or Split Supply Operation.

Diagrams

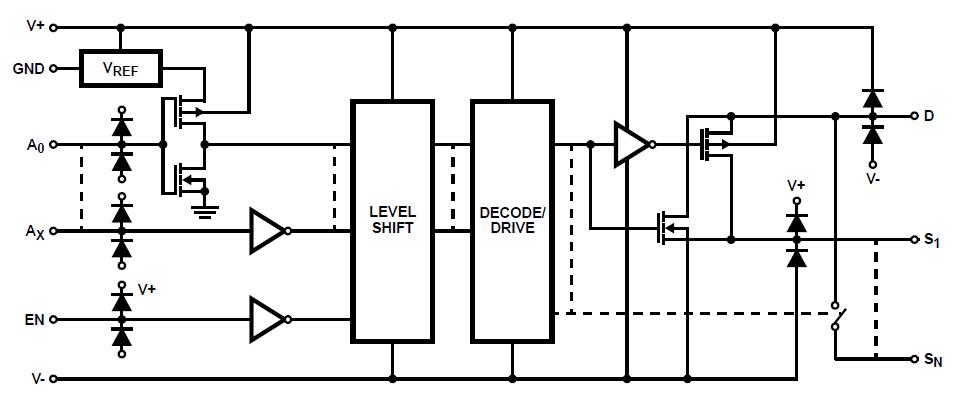

DG407DJ5 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DG407DJ
DG407DJ
Vishay/Siliconix
Multiplexer Switch ICs Dual Diff 8:1 Multiplexer/MUX
Data Sheet
0-56: $4.43
56-100: $4.33
100-200: $4.28
200-500: $4.18
DG407DJ+
DG407DJ+
Maxim Integrated Products
Multiplexer Switch ICs Dual 8:1 CMOS Analog
Data Sheet
0-1: $8.64
1-25: $5.76
25-50: $4.26
50-100: $4.17
DG407DJ-E3
DG407DJ-E3
Vishay/Siliconix
Multiplexer Switch ICs Dual Diff 8:1 Multiplexer/MUX
Data Sheet
0-1: $3.99
1-25: $3.64
25-50: $3.55
50-100: $3.37
DG407DJZ
DG407DJZ

IC MULTIPLEXER DUAL 8X1 28DIP
Data Sheet
0-429: $3.12
