Product Summary
The DM7404N is a Hex Inverting Gate. The DM7404N contains six independent gates each of which performs the logic INVERT function.
Parametrics
DM7404N absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 5.5V; (3)Operating Free Air Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: -65℃ to +150℃.
Features
DM7404N feature: Alternate Military/Aerospace device (5404) is available. Contact a National Semiconductor Sales Office/Distributor for specifications.

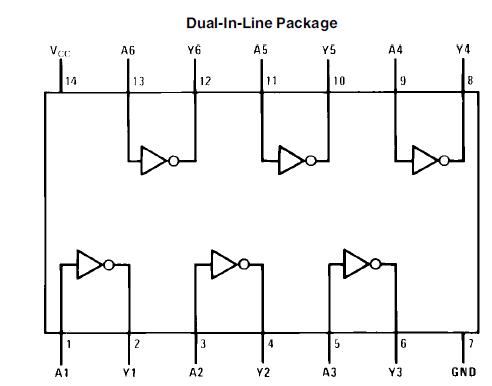

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM7404N |
Fairchild Semiconductor |
Inverters Hex Inverter |
Data Sheet |
Negotiable |
|
||||
