Product Summary

The DS96175CN is a high speed quad differential line receiver, designed to meet EIA Standard RS-485. The device has TRI-STATE outputs and are optimized for balanced multipoint data bus transmission at rates up to 10Mbps. The receiver features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of 200 mV over a common mode input voltage range of -7V to +12V. The receiver is therefore suitable for multipoint applications in noisy environments. The DS96175CN features separate active high Enables for each receiver pair. Compatible RS-485 drivers, transceivers, and repeaters are also offered to provide optimum bus performance.

Parametrics

DS96175CN absolute maximum ratings: (1)Storage Temperature Range Molded DIP: -65℃ to +150℃; (2)Lead Temperature Molded DIP (soldering, 10sec.): 265℃; (3)Maximum Power Dissipation at 25℃, N-Molded Package: 1.84W; (4)Supply Voltage: 7V; (5)Input Voltage, A or B Inputs: ±25V; (6)Differential Input Voltage: ±25V; (7)Enable Input Voltage: 7V; (8)Low Level Output Current: 50 mA.

Features

DS96175CN features: (1)Meets EIA Standard RS-485, RS-422A, RS-423A; (2)Designed for multipoint bus applications; (3)TRI-STATE Outputs; (4)Common mode input voltage range: -7V to +12V; (5)Operates from single +5V supply; (6)Input sensitivity of ±200 mV over common mode range; (7)Input hysteresis of 50 mV typical; (8)High input impedance; (9)DS96173/DS96175 are lead and function compatible with SN75173/75175 or the AM26LS32/MC3486 respectively.

Diagrams

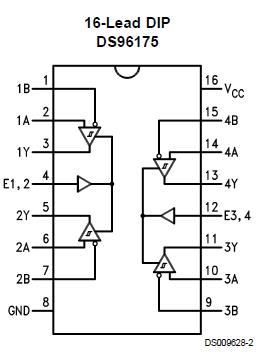

DS96175CN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS96175CN
DS96175CN
National Semiconductor (TI)
Bus Receivers
Data Sheet
0-200: $2.15
200-250: $1.96
250-500: $1.70
500-1000: $1.36
DS96175CN/NOPB
DS96175CN/NOPB
National Semiconductor (TI)
Bus Receivers
Data Sheet
0-1: $2.74
1-25: $2.20
25-100: $2.00
100-250: $1.81
