Product Summary

The DS96F175CJ is a high speed quad differential line receiver, designed to meet the EIA-485 standard. The DS96F175CJ offers improved performance due to the use of L-FAST bipolar technology. The use of LFAST technology allows the DS96F175CJ to operate at higher speeds while minimizing power consumption. The DS96F175CJ has TRI-STATE outputs and are optimized for balanced multipoint data bus transmission at rates up to 15 Mbps. The receivers feature high input impedance, input hysteresis for increased noise immunity, and input sensitivity of 200 mV over a common mode input voltage range of -7V to +12V. The device is therefore suitable for multipoint applications in noisy environments. The DS96F175CJ features separate active high Enables for each receiver pair.

Parametrics

DS96F175CJ absolute maximum ratings: (1)Storage Temperature Range (TSTG): -65℃ to +175℃; (2)Lead Temperature(Soldering, 60 sec.): 300℃; (3)Max. Package Power Dissipation at 25℃ Ceramic DIP (J): 1500 mW; (4)Supply Voltage: 7.0V; (5)Input Voltage, A or B Inputs: ±25V; (6)Differential Input Voltage: ±25V; (7)Enable Input Voltage: 7.0V; (8)Low Level Output Current: 50 mA.

Features

DS96F175CJ features: (1)Meets EIA-485, EIA-422A, EIA-423A standards; (2)Designed for multipoint bus applications; (3)TRI-STATE outputs; (4)Common mode input voltage range: .7V to +12V; (5)Operates from single +5.0V supply; (6)Reduced power consumption (ICC = 50 mA max); (7)Input sensitivity of ±200 mV over common mode range; (8)Input hysteresis of 50 mV typical; (9)High input impedance; (10)Military temperature range available; (11)Qualified for MIL STD 883C; (12)Available to standard military drawings (SMD); (13)Available in DIP(J), LCC(E), and FlatPak (W) packages; (14)DS96F173 and DS96F175 are lead and function compatible with SN75173/175 or the AM26LS32/MC3486.

Diagrams

DS96F175CJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

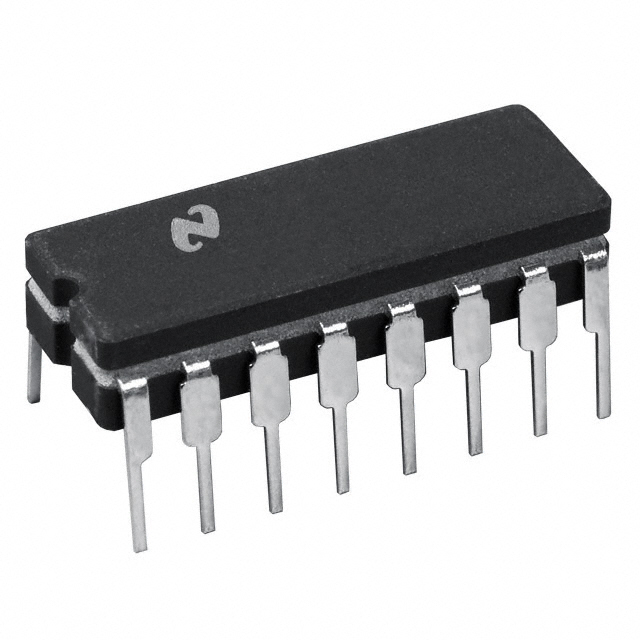

DS96F175CJ
DS96F175CJ


IC DRIVER QUAD EIA485/422 16CDIP

Data Sheet

Negotiable
