Product Summary

The EP2C8Q208C8N is an FPGA. It is manufactured on 300-mm wafers using TSMC’s 90-nm low-k dielectric process to ensure rapid availability and low cost. By minimizing silicon area, the EP2C8Q208C8N can support complex digital systems on a single chip at a cost that rivals that of ASICs. The EP2C8Q208C8N supports the Nios II embedded processor which allows you to implement custom-fit embedded processing solutions. It can also expand the peripheral set, memory, I/O, or performance of embedded processors.

Parametrics

EP2C8Q208C8N absolute maximum ratings: (1)Supply voltage:–0.5V to 1.8V; (2)Output supply voltage:–0.5V to 4.6V; (3)PLL supply voltage:–0.5V to 1.8V; (4)DC input voltage:–0.5V to 4.6V; (5)DC output current:–25mA to 40mA; (6)Storage temperature:–65℃ to 150℃; (7)Junction temperature:125℃.

Features

EP2C8Q208C8N features: (1)133-MHz PCI-X 1.0 specification compatibility; (2)High-speed external memory support, including DDR, DDR2, and SDR SDRAM, and QDRII SRAM supported by drop in Altera IP MegaCore functions for ease of use; (3)Three dedicated registers per I/O element (IOE): one input register, one output register, and one output-enable register; (4)Programmable bus-hold feature; (5)Programmable output drive strength feature; (6)Programmable delays from the pin to the IOE or logic array; (7)I/O bank grouping for unique VCCIO and/or VREF bank settings; (8)MultiVolt I/O standard support for 1.5-, 1.8-, 2.5-, and 3.3- interfaces; (9)Hot-socketing operation support; (10)Tri-state with weak pull-up on I/O pins before and during configuration; (11)Programmable open-drain outputs; (12)Series on-chip termination support; (13)Fast serial configuration allows configuration times less than 100 ms; (14)Decompression feature allows for smaller programming file storage and faster configuration times; (15)Supports multiple configuration modes: active serial, passive serial, and JTAG-based configuration; (16)Supports configuration through low-cost serial configuration devices; (17)Device configuration supports multiple voltages (either 3.3, 2.5, or 1.8 V).

Diagrams

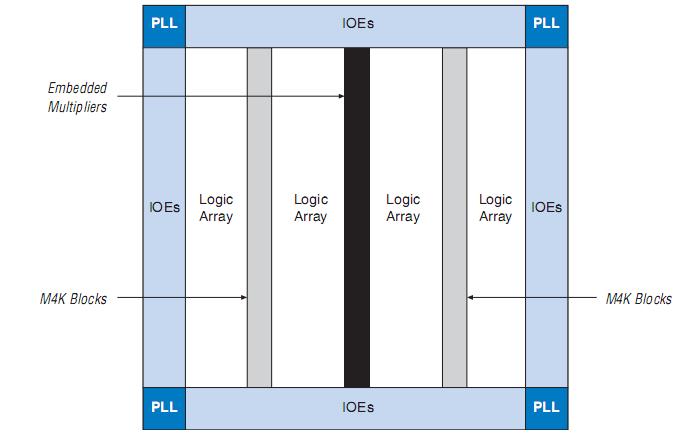

EP2C8Q208C8N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2C8Q208C8N
EP2C8Q208C8N


IC CYCLONE II FPGA 8K 208-PQFP

Data Sheet

0-1: $12.18
