EPM7064AETC100-7N

Programmable Logic device, QFP-100, –0.5 to 4.6 V, high-density

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~7.50

PartNumber:: EPM7064AETC100-7N

Brand:: Altera Corporation - ALTR | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-10

From Other Seller

Part Number:EPM7064AETC100-7N
US $6.00 - 7.50
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

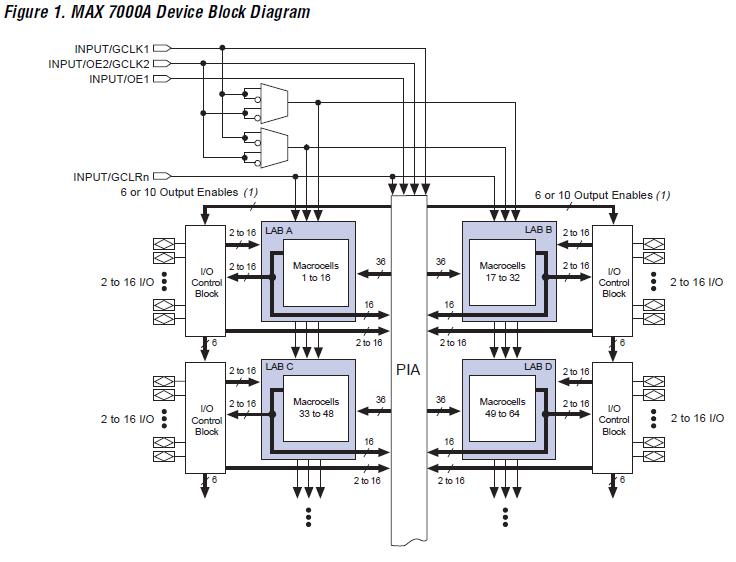

The EPM7064AETC100-7N is a high-density, high performance Programmable Logic device which based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EPM7064AETC100-7N operates with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.

Parametrics

EPM7064AETC100-7N absolute maximum ratings: (1)Supply voltage With respect to ground: –0.5 to 4.6 V; (2)DC input voltage: –2.0 to 5.75 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature BGA, FineLine BGA, PQFP, and packages, under bias: 135 ℃.

Features

EPM7064AETC100-7N features: (1)Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1; (2)Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71; (3)Enhanced ISP features: Enhanced ISP algorithm for faster programming (excluding EPM7128A and EPM7256A devices), ISP_Done bit to ensure complete programming (excluding; (4)EPM7128A and EPM7256A devices), Pull-up resistor on I/O pins during in-system programming; (5)Pin-compatible with the popular 5.0-V MAX 7000S devices; (6)High-density PLDs ranging from 600 to 10,000 usable gates; (7)Extended temperature range.
