Product Summary

The GA355DR7GC102KY02L is a chip monolithic ceramic capacitor. The applications of the GA355DR7GC102KY02L include Ideal for use as Y capacitor or X capacitor for various switching power supplies, Ideal for modem applications.

Parametrics

GA355DR7GC102KY02L absolute maximum ratings: (1)supply voltage: 250V; (2)Operating Temperature Range: -55 to +125℃; (3)Insulation Resistance(I.R.): More than 6,000M.

Features

GA355DR7GC102KY02L features: (1)Chip monolithic ceramic capacitor (certified as conforming to safety standards) for AC lines; (2)A new monolithic structure for small, high capacitance capable of operating at high voltage levels; (3)Compared to lead type capacitors, this new capacitor is greatly downsized and low-profiled to 1/10 or less in volume, and 1/4 or less in height; (4)The type GC can be used as an X1-class and Y2-class capacitor, line-by-pass capacitor of UL1414; (5)+125 degree C guaranteed; (6)Only for reflow soldering.

Diagrams

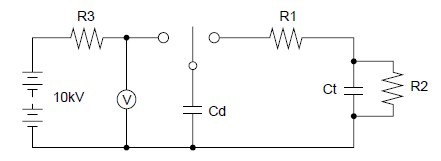

GA355DR7GC102KY02L circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GA355DR7GC102KY02L
GA355DR7GC102KY02L
Murata
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 2220 1000pF 250Vac X7R 10%
Data Sheet
0-1: $2.42
1-50: $1.97
50-100: $1.77
100-500: $1.48
500-1000: $1.07
