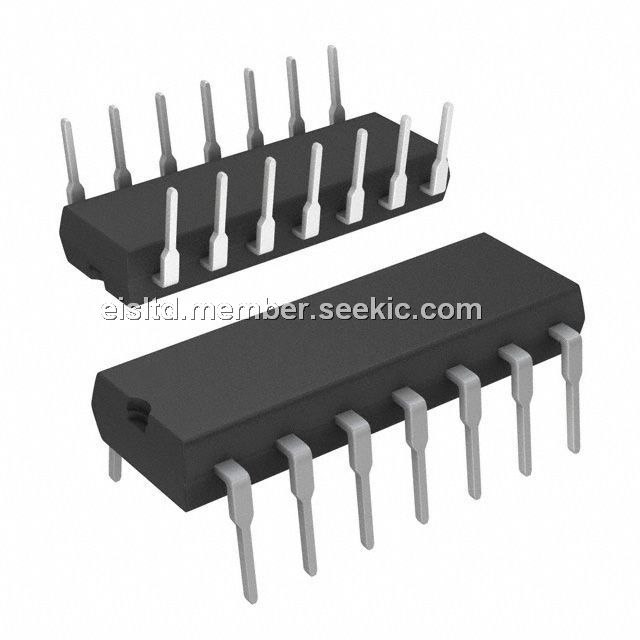

Product Summary
The HCF40106BE is a hex schmitt trigger. The HCF40106BE is a monolithic integrated circuit, available in 14-lead dual in-line plastic or ceramic package and plastic micropackage. The HCF40106BE is consisting of six Schmitt-trigger circuit. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switche at different points for positive and negativegoing signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH).
Parametrics
HCF40106BE absolute maximum ratings: (1)Supply Voltage, VDD: -0.5 to + 18V; (2)Input Voltage, Vi: -0.5 to VDD +0.5 V; (3)DC Input Current (any one input), II: ±10 mA; (4)Total Power Dissipation (per package), Ptot:200mW; Dissipation per Output Transistor for To p = Full Package-temperature Range, Ptot: 100mW; (5)Operating Temperature, Top: -40 to +85℃; (6)Storage Temperature, Tstg: -65 to + 150℃.
Features
HCF40106BE features: (1)Schmitt-trigger action with no ex-ternal components; (2)Hysteresis voltage (TYP.) 0.9V AT VDD = 5V, 2.3V at VDD = 10V and 3.5V AT VDD = 15V; (3)Noise immunity greater than 50%; (4)No limiton input rise and fall time; (5)Low vdd to vss current during slow input ramp; (6)Standardized symmetrical output characteristics; (7)Quiescent current specified at 20v for hcc device; (8)5V, 10V, and 15V parametric ratings; (9)Input currentof 100nA at 18v and 25℃ for hcc device; (10)100% testedfor quiescent current; (11)Meets all requirements of jedec tentative standard n°13A, "standard specifications for description of "b" seriescmos devices".

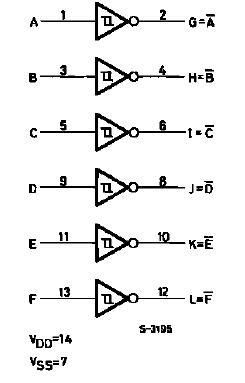

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCF40106BE |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
HCF40106BEY |
STMicroelectronics |
Inverters Hex Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
