Product Summary
The INA134PA is an audio differential line receiver. It consists of high performance op amps with on-chip precision resistors. The INA134PA is fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1 kHz) and high slew rate (14V/ms), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.
Parametrics
INA134PA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range:±80V; (3)Output Short-Circuit (to ground)(2): Continuous; (4)Operating Temperature:–55℃ to +125℃; (5)Storage Temperature:–55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features

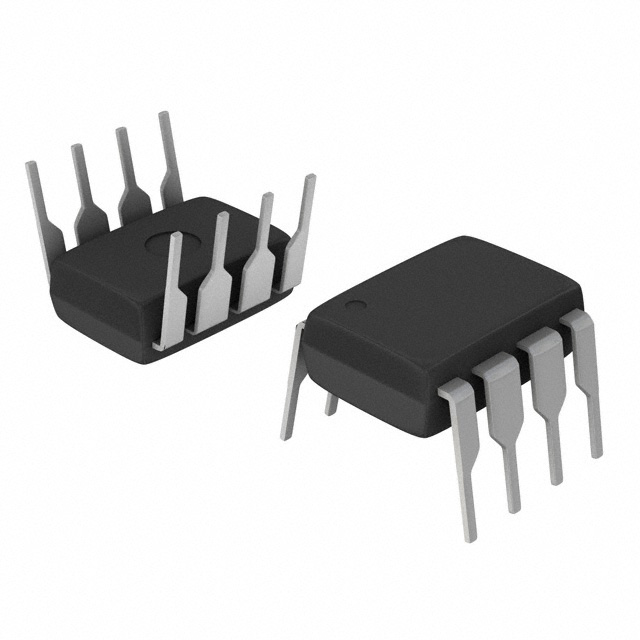

INA134PA features: (1)single and dual versions; (2)low distortion: 0.0005% at f = 1kHz; (3)high slew rate: 14V/ms; (4)fast settling time: 3ms to 0.01%; (5)wide supply range: ±4V to ±18V; (6)low quiescent current: 2.9mA max; (7)high CMRR: 90dB; (8)fixed gain = 0dB (1V/V); (9)packages—single: 8-pin DIP, SO-8 dual: 14-pin DIP, SO-14.

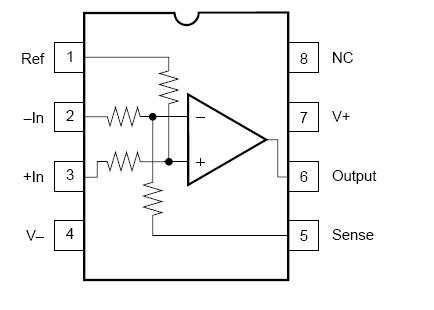

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 INA134PA |
Texas Instruments |
Audio Transmitters, Receivers, Transceivers Audio Diff Line Receivers 0dB (G=1) |
Data Sheet |
|
|
||||||||||||
|
INA134PAG4 |
Texas Instruments |
Audio Transmitters, Receivers, Transceivers Audio Diff Line Receivers 0dB (G=1) |
Data Sheet |
|
|
||||||||||||
