Product Summary

The IRF8010PBF is a HEXFET Power MOSFET. The applications of the IRF8010PBF include High frequency DC-DC converters, UPS and Motor Control, Lead-Free.

Parametrics

IRF8010PBF absolute maximum ratings: absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 80 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 57 A; (3)Pulsed Drain Current, IDM: 320 A; (4)PD @TC = 25℃ Power Dissipation: 260 W; (5)Linear Derating Factor: 1.8 W/℃; (6)Gate-to-Source Voltage, VGS: ±20 V; (7)Peak Diode Recovery dv/dt, dv/dt: 16 V/ns; (8)Operating Junction and Storage Temperature Range, TJ, TSTG: -55 to + 175℃; (9)Soldering Temperature, for 10 seconds: 300 (1.6mm from case)℃; (10)Mounting torqe, 6-32 or M3 screw: 10 lbf·in (1.1N·m).

Features

IRF8010PBF features: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001); (3)Fully Characterized Avalanche Voltage and Current; (4)Typical RDS(on) = 12mΩ.

Diagrams

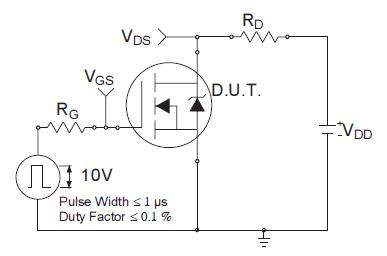

IRF8010PBF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF8010PBF
IRF8010PBF
International Rectifier
MOSFET MOSFT 100V 80A 15mOhm 81nC
Data Sheet
0-1: $2.27
1-25: $1.47
25-100: $1.07
100-250: $1.00
