Product Summary
The AD9850BRSZ-REEL is a highly integrated device that uses advanced DDS technology coupled with an internal high speed, high performance D/A converter and comparator to form a complete, digitally programmable frequency synthesizer and clock generator function. When referenced to an accurate clock source, the AD9850BRSZ-REEL generates a spectrally pure, frequency/phase programmable, analog output sine wave. The applications of the AD9850BRSZ-REEL include Frequency/Phase—Agile Sine Wave Synthesis, Clock Recovery and Locking Circuitry for Digital Communications, Digitally Controlled ADC Encode Generator and Agile Local Oscillator Applications.
Parametrics
AD9850BRSZ-REEL absolute maximum ratings: (1)Maximum Junction Temperature: 150℃; (2)VDD: 6 V; (3)Digital Inputs: –0.7 V to +VS; (4)Digital Output Continuous Current: 5 mA; (5)DAC Output Current: 30 mA; (6)Storage Temperature: –65 to +150℃; (7)Operating Temperature: –40 to +85℃; (8)Lead Temperature (Soldering 10 sec): 300℃; (9)SSOP θJA, Thermal Impedance: 82℃/W.
Features
AD9850BRSZ-REEL features: (1); (2)On-Chip High Performance DAC and High Speed Comparator; (3)DAC SFDR > 50 dB @ 40 MHz AOUT; (4)32-Bit Frequency Tuning Word; (5)Simplified Control Interface: Parallel Byte or Serial Loading Format; (6)Phase Modulation Capability; (7)3.3 V or 5 V Single-Supply Operation; (8)Low Power: 380 mW @ 125 MHz (5 V); 155 mW @ 110 MHz (3.3 V); (9)Power-Down Function; (10)Ultrasmall 28-Lead SSOP Packaging.

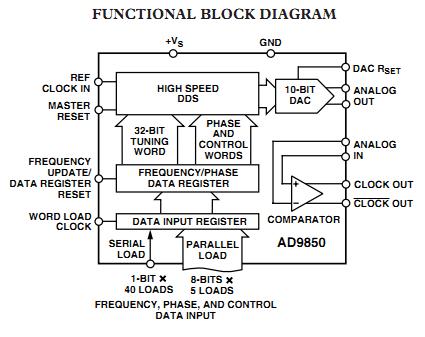

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9850BRSZ-REEL |
|
IC DDS SYNTHESIZER CMOS 28-SSOP |
Data Sheet |
|
|
||||||
