Product Summary

The L6562ADTR is a current-mode PFC controller operating in Transition Mode (TM). The L6562ADTR offers improved performance.The highly linear multiplier includes a special circuit, able to reduce AC input current distortion, that allows wide-range-mains operation with an extremely low THD, even over a large load range. The applications of the L6562ADTR include PFC pre-regulators for: IEC61000-3-2 compliant SMPS (Flat TV, desktop PC, games), HI-END AC-DC adapter/charger up to 400W, Electronic ballast, Entry level server & web server.

Parametrics

L6562ADTR absolute maximum ratings: (1)IC supply voltage (ICC ≤ 20mA), VCC: Self-limited; (2)Output totem pole peak current, IGD: Self-limited; (3)Analog inputs & outputs: -0.3 to 8 V; (4)Zero current detector max. current, IZCD: ±10 mA.

Features

L6562ADTR features: (1)Proprietary multiplier design for minimum thd; (2)Very accurate adjustable output overvoltage protection; (3)Ultra-low (30μA) Start-up current; (4)Low (2.5mA) quiescent current; (5)Digital leading-edge blanking on current sense; (6)Disable function on E/A input; (7)1.4% (@ TJ = 25℃) internal reference voltage; (8)-600/+800mA totem pole gate driver with active pull-down during UVLO and voltage clamp; (9)DIP-8/SO-8 packages.

Diagrams

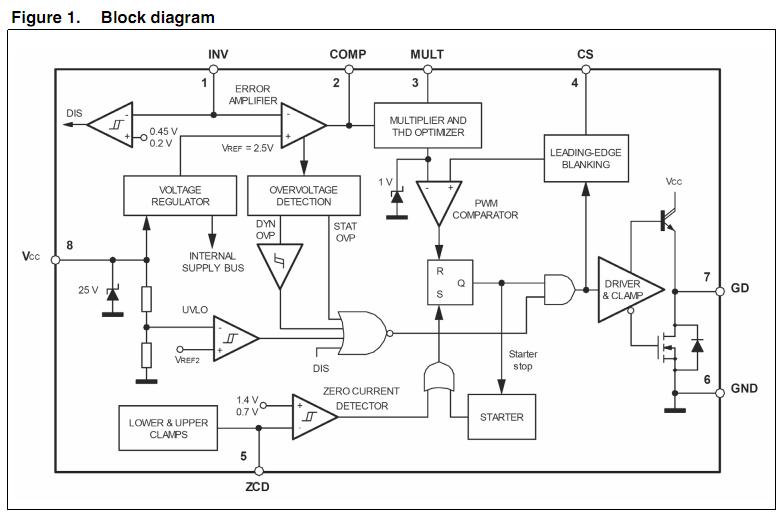

L6562ADTR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L6562ADTR
L6562ADTR

STMicroelectronics

Power Factor Correction ICs HV H-Bridge driver

Data Sheet

0-1: $0.61
1-10: $0.49
10-100: $0.43
100-250: $0.37
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L6560
L6560

STMicroelectronics

Power Factor Correction ICs Wide Input Voltage

Data Sheet

Negotiable
L6560A
L6560A

STMicroelectronics

Power Factor Correction ICs Wide Input Voltage

Data Sheet

Negotiable
L6560AD
L6560AD

STMicroelectronics

Power Factor Correction ICs Wide Input Voltage

Data Sheet

Negotiable
L6560AD013TR
L6560AD013TR

STMicroelectronics

Switching Converters, Regulators & Controllers Wide Input Voltage

Data Sheet

Negotiable
L6560D
L6560D

STMicroelectronics

Switching Converters, Regulators & Controllers Wide Input Voltage

Data Sheet

Negotiable
L6560D013TR
L6560D013TR

STMicroelectronics

Switching Converters, Regulators & Controllers Wide Input Voltage

Data Sheet

Negotiable
