Product Summary
The LF351M is a JFET input operational amplifier with an internally compensated input offset voltage. The LF351M supports wide bandwidth, low input bias currents and offset currents.
Parametrics
LF351M absolute maximum ratings: (1)Supply VoltageVCC: ±18V; (2)Differential Input Voltage VI(DIFF): 30V; (3)Input Voltage RangeVI: ±15V; (4)Output Short Circuit Duration: Continuous; (5)Power Dissipation PD: 500mW; (6)Operating Temperature TOPR: 0℃ ~ +70℃; (7)Storage Temperature Range TSTG: -65℃ ~ +150℃.
Features
LF351M features: (1)Internally trimmed offset voltage: 10mV; (2)Low input bias current : 50pA; (3)Wide gain bandwidth: 4MHz; (4)High slew rate : 13V/μs; (5)High input impedance : 1012Ω.

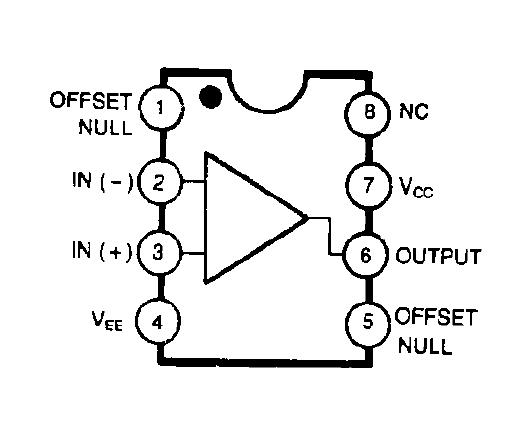

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LF351M |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps 8-SOP OP AMP |
Data Sheet |
Negotiable |
|
||||
|
LF351MX |
Fairchild Semiconductor |
Operational Amplifiers - Op Amps Single Op amplifier JFET |
Data Sheet |
Negotiable |
|
||||
