Product Summary
The LM10CN is a monolithic linear IC consisting of a precision reference, an adjustable reference buffer and an independent, high quality op amp. The LM10CN can operate from a total supply voltage as low as 1.1V or as high as 40V, drawing only 270μA. A complementary output stage swings within 15 mV of the supply terminals or will deliver ±20 mA output current with ±0.4V saturation. Reference output can be as low as 200 mV. The LM10CN is recommended for portable equipment and is completely specified for operation from a single power cell. In contrast, high output-drive capability, both voltage and current, along with thermal overload protection, suggest it in demanding general-purpose applications.
Parametrics
LM10CN absolute maximum ratings: (1)Total Supply Voltage: 7V; (2)Differential Input Voltage: ±7V; (3)Power Dissipation: internally limited; (4)Output Short-circuit Duration: continuous; (5)Storage-Temp. Range: -55℃ to +150℃; (6)Lead Temp (Soldering, 10 seconds), Metal Can: 300℃; (7)Lead Temp (Soldering, 10 seconds), DIP: 260℃; Vapor Phase (60 seconds): 215℃; Infrared (15 seconds)/: 220℃; (8)Maximum Junction Temperature: 85℃.
Features
LM10CN features: (1)input offset voltage: 2.0 mV (max); (2)input offset current: 0.7 nA (max); (3)input bias current: 20 nA (max); (4)reference regulation: 0.1% (max); (5)offset voltage drift: 2μV/℃; (6)reference drift: 0.002%/℃.

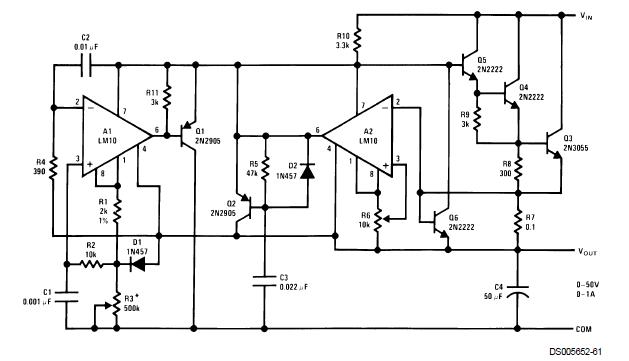

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LM10CN |
![]() National Semiconductor (TI) |
![]() Operational Amplifiers - Op Amps |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM10CN8 |
![]() |
![]() IC OP-AMP & REF LOW PWR 8-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() LM10CN8#PBF |
![]() |
![]() IC OP-AMP & REF LOW PWR 8-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() LM10CN/NOPB |
![]() National Semiconductor (TI) |
![]() Operational Amplifiers - Op Amps OP AMP AND VLTG REF |
![]() Data Sheet |
![]()
|
|
