Product Summary

The LM1458M is a general purpose dual operational amplifier. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent. The LM1458M is identical to the LM1558 except that the LM1458 has its specifications guaranteed over the temperature range from 0℃ to +70℃ instead of -55℃ to +125℃.

Parametrics

LM1458M absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 400 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration: Continuous; (6)Operating Temperature Range: 0 to +70℃; (7)Storage Temperature Range: -65 to +150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)Soldering Information: 260℃; (10)ESD tolerance: 300V.

Features

LM1458M features: (1)No frequency compensation required; (2)Short-circuit protection; (3)Wide common-mode and differential voltage ranges; (4)Low-power consumption; (5)8-lead can and 8-lead mini DIP; (6)No latch up when input common mode range is exceeded.

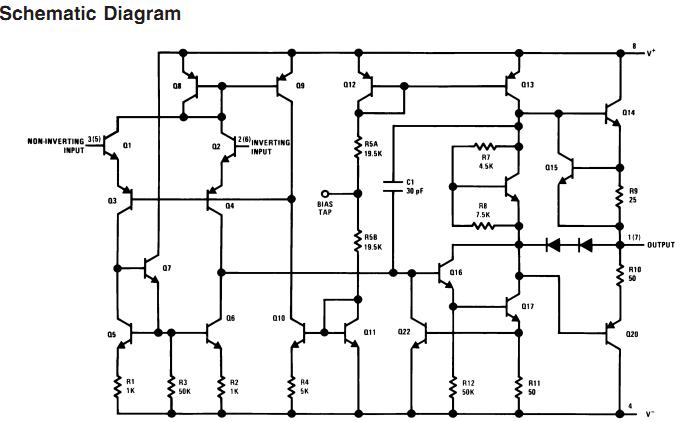

Diagrams

LM1458M pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM1458M/NOPB
LM1458M/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps DUAL OPERATIONAL AMP
Data Sheet
0-1: $0.59
1-25: $0.46
25-100: $0.40
100-250: $0.35
LM1458MX
LM1458MX
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-2500: $0.25
2500-5000: $0.20
5000-10000: $0.18
LM1458MX/NOPB
LM1458MX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $0.65
1-25: $0.50
25-100: $0.44
100-250: $0.38
LM1458M_Q
LM1458M_Q
Fairchild Semiconductor
Operational Amplifiers - Op Amps Dual Operational Amp
Data Sheet
Negotiable
LM1458M
LM1458M
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1235: $0.27
1235-2565: $0.25
2565-5035: $0.20
5035-10070: $0.18
