Product Summary
The LM148J is a true Quad 741 Op Amp. The LM148J consists of four independent, high gain, internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar 741 operational amplifier. In addition the total supply current for all four amplifiers is comparable to the supply current of a single 741 type op amp. Other features include input offset currents and input bias current which are much less than those of a standard 741. Also, excellent isolation between amplifiers has been achieved by independently biasing each amplifier and using layout techniques which minimize thermal coupling. The LM148J is characterized for operation over the full military temperature range of -55℃ to 125℃.
Parametrics
LM148J absolute maximum ratings: (1)Supply voltage, VCC+: 22 V; (2)Supply voltage, VCC-: -22V; (3)Differential input voltage, VID: 44 V; (4)Input voltage, VI: ±22 V; (5)Duration of output short circuit: unlimited; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range, TA: -55 to 125℃; (8)Storage temperature range: -65 to 150℃; (9)Case temperature for 60 seconds FK package: 260℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J package: 300℃.
Features
LM148J features: (1)μA741 Operating Characteristics; (2)Low Supply Current Drain: 0.6 mA Typ (per amplifier); (3)Low Input Offset Voltage; (4)Low Input Offset Current; (5)Class AB Output Stage; (6)Input/Output Overload Protection; (7)Designed to Be Interchangeable With National LM148, LM248, and LM348.

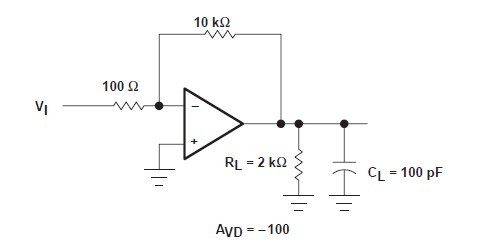

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM148J |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
Negotiable |
|
||||||||||||
 |
LM148J/PB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps QUAD 741 OP AMP |
Data Sheet |
|
|
||||||||||||
|
LM148JAN |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
