Product Summary
The LM201AN is a general purpose operational amplifier which feature improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. The LM201AN offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF capacitor. The LM201AN has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application. For example, in low frequency circuits it can be overcompensated for increased stability margin. Or the compensation can be optimized to give more than a factor of ten improvement in high frequency performance for most applications.
Parametrics
LM201AN absolute maxing ratings: (1)Supply Voltage: ±22V ; (2)Differential Input Voltage: ±30V ; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration: Continuous; (5)Operating Ambient Temp. Range: -25℃ to +85℃; (6)TJ Max H-Package: 150℃; N-Package: 150℃; J-Package 150℃; (7)Power Dissipation at TA=25℃, H-Package (Still Air): 500mW; (400 LF/Min Air Flow): 1200mW; N-Package: 900mW; J-Package: 1000 mW; (8)Thermal Resistance (Typical) θjA, H-Package (Still Air): 165℃/W; (400 LF/Min Air Flow): 67℃/W; N Package 135℃/W; J-Package: 110℃/W; (Typical)θjC, H-Package: 25℃/W.
Features
LM201AN features: (1)Offset voltage 3 mV maximum over temperature; (2)Input current 100 nA maximum over temperature; (3)Offset current 20 nA maximum over temperature; (4)Guaranteed drift characteristics; (5)Offsets guaranteed over entire common mode and supply voltage ranges; (6)Slew rate of 10V/μs as a summing amplifier.

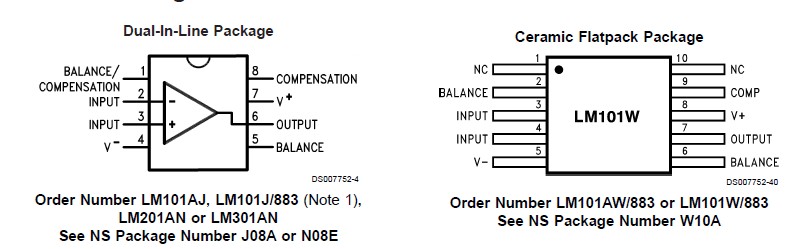

Diagrams
