Product Summary
The LM359N is a current differencing (Norton) input amplifier. Design emphasis has been placed on obtaining high frequency performance and providing user programmable amplifier operating characteristics. Each amplifier is broadbanded to provide a high gain bandwidth product, fast slew rate and stable operation for an inverting closed loop gain of 10 or greater. Pins for additional external frequency compensation are provided. The LM359N is designed to operate from a single supply and can accommodate input common-mode voltages greater than the supply. The applications of the LM359N include General purpose video amplifiers, High frequency, high Q active filters, Photo-diode amplifiers, Wide frequency range waveform generation circuits, All LM3900 AC applications work to much higher frequencies.
Parametrics
LM359N absolute maximum ratings: (1)Supply Voltage: 22 VDC or ±11 VDC; (2)Power Dissipation, J Package: 1W; N Package: 750 mW; (3)Maximum TJ, J Package: +150℃; N Package: +125℃; (4)Input Currents, IIN(+) or IIN(-): 10 mADC; (5)Set Currents, ISET(IN) or ISET(OUT): 2 mADC; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)Dual-In-Line Package Soldering (10 sec.): 260℃; (10)Small Outline Package Vapor Phase (60 sec.): 215℃; Infrared (15 sec.): 220℃.
Features
LM359N features: (1)User programmable gain bandwidth product, slew rate, input bias current, output stage biasing current and total device power dissipation; (2)High gain bandwidth product (ISET = 0.5 mA) 400 MHz for AV = 10 to 100; 30 MHz for AV = 1; (3)High slew rate (ISET = 0.5 mA); 60 V/μs for AV = 10 to 100; 30 V/μs for AV = 1; (4)Current differencing inputs allow high common-mode input voltages; (5)Operates from a single 5V to 22V supply; (6)Large inverting amplifier output swing, 2 mV to VCC - 2V; (7)Low spot noise, 6nV/√Hz, for f > 1 kHz.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
LM359N |
Other |
Data Sheet |
Negotiable |
|
||||||

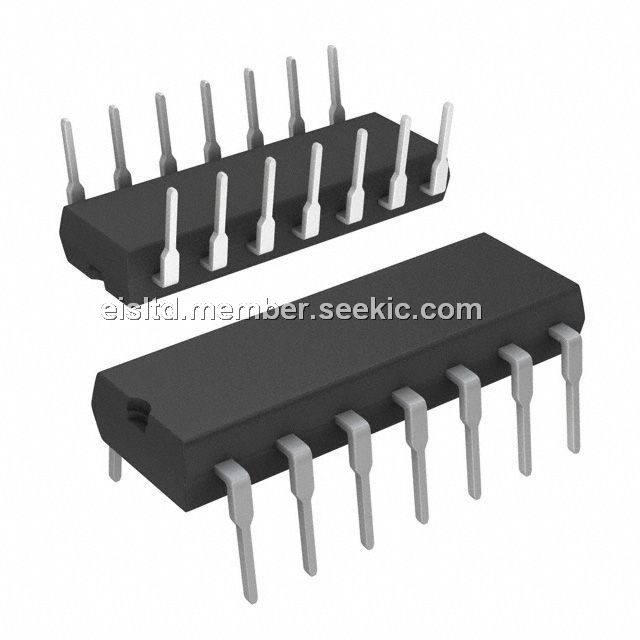

LM359N/NOPB |
IC AMP DUAL PROG CUR MODE 14-DIP |
Data Sheet |
Negotiable |
|
